Metal Stamping Assemblies
Beyond individual stamped parts — we deliver complete sub-assemblies that combine precision metal stamping with secondary operations including welding, riveting, insert pressing, and hardware installation. Ship-ready, inspection-certified, OEM-ready.
Request Assembly Quote
What Are Metal Stamping Assemblies?
A metal stamping assembly is a finished or semi-finished component that combines one or more stamped metal parts with secondary manufacturing operations. Instead of receiving loose stampings that require additional in-house processing, OEM customers receive a ready-to-install sub-assembly that eliminates labor costs and reduces supply chain complexity.
Common assembly operations performed alongside stamping include spot welding, MIG/TIG welding, self-clinching nut insertion, PEM stud installation, blind riveting, press-fit bushing installation, and tape-and-reel packaging for automated assembly lines.
Secondary Operations We Perform
Insert Pressing & PEM Installation
Self-clinching nuts, studs, standoffs, and PEM fasteners pressed into stamped panels. Torque-verified per drawing specification.

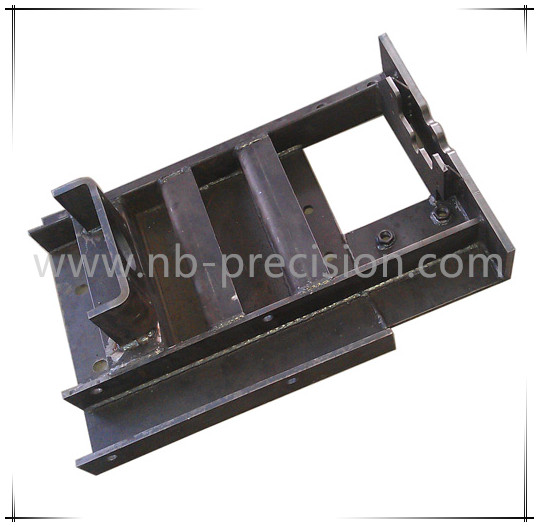

Spot & MIG/TIG Welding
Resistance spot welding for sheet metal brackets; MIG/TIG for structural assemblies. AWS D1.1/D1.3 weld procedures available.
Riveting & Clinching
Blind rivets, solid rivets, and TOX clinching for joining multiple stamped layers without fasteners. High pull-out strength verified.
Press-Fit & Bushing Installation
Precision bushings, bearings, and inserts press-fitted to H7/p6 tolerance. Retention force tested per ASME B4.1 standards.
Surface Finishing
Zinc plating, powder coating, anodizing, nickel/tin plating, and black oxide applied to assembled components. RoHS-compliant coatings available.
Custom Packaging & Kitting
Tray packaging, poly bagging, blister packs, and labeled kits. ESD-safe packaging for electronic assemblies. Kanban replenishment available.
Assembly Capabilities at a Glance
| Parameter | Capability |
|---|---|
| Stamping Tolerance | ±0.01 mm (precision), ±0.05 mm (standard) |
| Assembly Tolerance | ±0.02–0.05 mm (positional GD&T) |
| Component Count per Assembly | 2–50+ individual parts |
| Materials | Steel, stainless, aluminum, copper, brass, titanium |
| Volume Range | 500 – 5,000,000+ assemblies/year |
| Quality System | ISO 9001:2015, IATF 16949 capable |

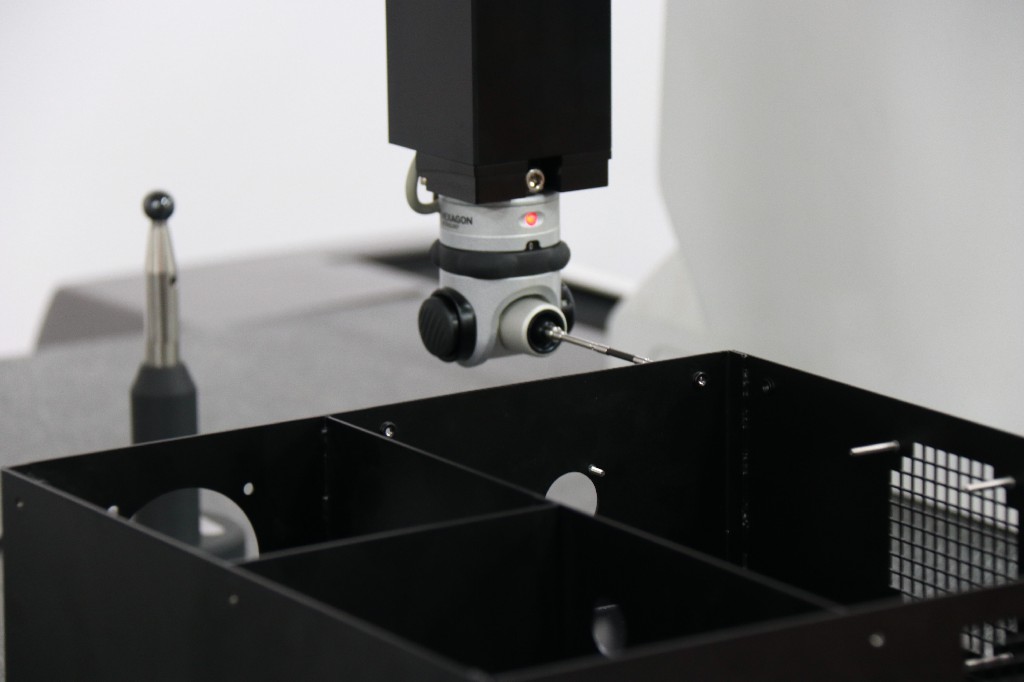

| Inspection | CMM, vision system, pull/push force testing, gauge R&R |
| Documentation | PPAP Level 3, FAI, FAIR, CoC, IMDS data sheet |
| Lead Time (Tooling + 1st Article) | 4–8 weeks |
| Production Lead Time | 2–4 weeks (standard); 1 week (expedite) |
Why Buyers Choose Stamping Assemblies Over Loose Parts
- ✓Eliminate in-house labor: Secondary operations handled at our facility — no assembly line needed at your end.
- ✓Single-source accountability: One supplier, one PO, one quality record — no finger-pointing between vendors.
- ✓Tighter dimensional control: Assembly fixtures hold GD&T callouts that loose parts cannot guarantee.
- ✓Reduced receiving inspection: Ship-to-stock approved: CoC and dimensional report included with every shipment.
- ✓Inventory consolidation: One line item per assembly instead of 5–20 individual part numbers.
Industries We Serve with Stamping Assemblies
Automotive
Bracket assemblies, clip-and-nut packs, heat shield assemblies, seat mechanism sub-assemblies. IATF 16949 documentation.
Electronics / EV
Battery cell holder assemblies, busbar-to-connector assemblies, EMI shield frames with PEM studs, ESD-safe packaging.
Medical Devices
Surgical instrument sub-assemblies, device housing frames, cleanroom packaging. ISO 13485 documentation on request.
Appliances & HVAC
Motor lamination stacks, control panel sub-frames, door hinge assemblies, compressor bracket kits.
Industrial / Defense
Enclosure weldments, rack mount assemblies, precision instrument frames, MIL-spec surface finishes available.
Our Assembly Quality Process
Every stamping assembly program follows a structured quality workflow from first article through production:
- DFM Review: Engineering feedback on stamping feasibility, assembly stack-up tolerance, and fastener selection before tooling cut.
- Fixture Design: Dedicated assembly jigs ensure positional GD&T is held lot-to-lot.
- First Article Inspection (FAI/FAIR): 100% dimensional report on 3–5 pieces from first production run.
- PPAP Submission: Level 1–3 PPAP packages prepared for automotive and tier-1 customers.
- In-Process SPC: Control charts on critical characteristics (Cpk ≥ 1.67 target).
- Outgoing Inspection: AQL 2.5 sampling per MIL-STD-1916, with full CoC and dimensional summary.
Related Services
Custom Metal Stamping
Progressive die, compound die, and transfer die stamping for any geometry.
OEM Metal Stamping
Long-term OEM supply programs with blanket orders, JIT, and VMI.
Metal Stamping Components
Precision stamped components for electronics and industrial OEM applications.
Request a Quote
Send us your drawing or BOM for an assembly quote within 24 hours.
Frequently Asked Questions
What is a metal stamping assembly?
A metal stamping assembly combines one or more precision stamped metal parts with secondary operations—such as welding, riveting, insert pressing, or plating—to produce a ready-to-install component. Buyers receive a finished sub-assembly rather than loose stampings that require additional in-house processing.
What secondary operations do you offer with stamping?
We offer spot welding, MIG/TIG welding, resistance welding, blind and solid riveting, TOX clinching, PEM insert pressing, press-fit bushing installation, surface finishing (zinc plating, powder coating, anodizing), and custom packaging/kitting. Specific operations depend on your design and production volume.
Can you produce PPAP documentation for automotive assemblies?
Yes. We prepare PPAP Level 1–3 packages including dimensional results, material certifications, process flow diagrams, PFMEA, control plans, and capability studies (Cpk). Our quality system is aligned with IATF 16949 requirements for automotive supply chains.
What is the minimum order quantity for stamping assemblies?
Minimum order quantities depend on tooling complexity and assembly operations. For simple assemblies (2–3 components), MOQ starts around 500–1,000 pieces. More complex multi-component assemblies with dedicated fixtures typically start at 2,000–5,000 pieces per run. Contact us with your requirements for a specific MOQ recommendation.
How do you ensure dimensional consistency in assemblies?
We use dedicated assembly fixtures designed to your GD&T callouts, CMM verification on first articles, and in-process go/no-go gauging. Statistical process control (SPC) tracks critical characteristics throughout production, targeting Cpk ≥ 1.33 as standard and ≥ 1.67 for automotive-critical features.
Do you supply assemblies for EV battery systems?
Yes. We produce busbar-to-connector assemblies, battery cell holder frames, and EV power distribution components. Materials include high-conductivity copper (C11000), beryllium copper, and aluminum alloys. ESD-safe packaging and RoHS/REACH compliance documentation are standard for EV programs.
Ready to Consolidate Your Supply Chain?
Send us your drawing or BOM. We will review feasibility, recommend the right assembly process, and provide a detailed quote within 24 hours.
