Design for Metal Stamping: Engineering Guidelines That Reduce Cost and Improve Quality

The most expensive thing in metal stamping is not tooling. It is a design that cannot be manufactured—or one that can be manufactured, but only with heroic effort and constant rework.

📖 Complete Overview Of Metal Stamping — Read our complete overview of metal stamping to learn more about design for metal stamping.

I have seen engineers submit drawings where the specified tolerances were tighter than the machine’s press repeatability. Where holes were placed 0.8mm from a formed edge on 1.0mm sheet. Where a blind pocket required punching from four different directions. Each of these designs could technically be stamped—with multiple setups, special fixtures, additional gauging, and a piece price three times higher than necessary.

Design for Manufacturability (DFM) is how you avoid paying for those mistakes. It is not a review step at the end of the design process. It is a set of constraints you internalize before you draw the first line.

This guide covers the specific rules: bend radii, hole sizing, tolerances, edge distances, and the decisions that separate a stampable design from an expensive one.

Why DFM Matters More in Stamping Than in Machining

In CNC machining, a design change late in development costs you a revised program and maybe a day of setup time. In stamping, a design change after tooling is cut can cost $8,000–$40,000 to modify a progressive die and three to six weeks of lead time.

The economic logic is asymmetric: 90% of your part cost is committed the moment your drawing is released to tooling. Tolerances, feature geometry, and material selection all flow into die design decisions that become very expensive to reverse.

This is why metal stamping tooling must be designed around your part geometry—not the other way around. When DFM review happens after tooling, you are renegotiating costs from a weak position.

The earlier DFM constraints enter the design, the cheaper the outcome. Ideally: before the first CAD sketch. Realistically: before the drawing is sent for quote.

Material Selection: The First DFM Decision

Material choice constrains everything else. Before specifying any geometry, confirm:

Formability rating: Low-carbon steel (1008/1010) is the benchmark—excellent formability, predictable springback, wide process window. High-strength steels (HSLA, DP600) require larger bend radii and more press force. Aluminum alloys vary enormously: 1100-H14 is highly formable; 7075-T6 is nearly impossible to stamp without fracture.

Thickness tolerance on the coil: Commercial coil steel tolerates ±10% on thickness (ASTM A1008). If your tolerance stack-up assumes nominal thickness, you may have intermittent fit problems with no obvious cause. Order coil with tighter thickness tolerance (+0/-0.05mm) if your assembly is sensitive.

Springback characteristics: Stainless steel (300 series) has high yield strength relative to Young’s modulus—springback is significant (3–8°) and must be overbent to compensate. Low-carbon steel is more predictable (1–3°). Aluminum depends heavily on temper.

A general formability ranking for common stamping materials (most to least formable):

1. 1. Copper alloys (C11000, C26000) — excellent
2. 2. Low-carbon steel (1008/1010/1018) — excellent
3. 3. Aluminum 1100, 3003 — excellent
4. 4. Aluminum 5052 — good
5. 5. Stainless steel 304/316 — moderate (springback management required)
6. 6. Aluminum 6061-T6 — moderate (requires larger radii)
7. 7. HSLA / DP steels — limited (progressive forming may be required)
8. 8. Aluminum 7075 — poor (avoid bending)

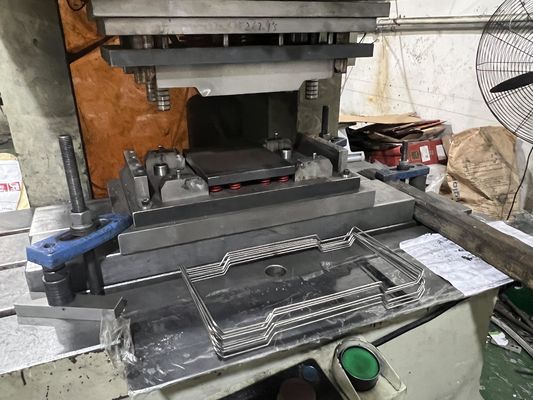

Minimum Bend Radius: The Rule That Saves Dies

The minimum bend radius is the smallest inside radius you can form without cracking the outer fiber of the material. Go below it and you get micro-cracking, visible fractures, or delamination on the bend surface.

General rule: Minimum inside bend radius = K × material thickness (t)

Bend direction relative to grain: Rolling direction matters. Bending perpendicular to the rolling direction (across the grain) allows smaller radii. Bending parallel to rolling (with the grain) requires 1.5–2× larger radius or risk cracking. For tight-radius aluminum parts, specify “bend perpendicular to rolling direction” on the drawing.

Practical tip: When you design a sharp corner (R = 0), you are asking for a coined bend. This requires 3–5× more press tonnage than air bending and accelerates die wear. Use the minimum functional radius, not zero.

Hole Size and Placement: Where Most DFM Errors Occur

Holes in stamped parts are formed by punching, not drilling. The forces involved are very different, and the constraints reflect that.

Minimum Hole Diameter

The punch must be strong enough to push through the material without deflecting or breaking. Minimum hole diameter recommendations:

For 1.5mm mild steel, minimum punched hole = 1.5mm diameter. Smaller holes require step punching, special punch materials (M2/M4 tool steel or carbide), or EDM drilling—all of which add cost.

Hole-to-Edge Distance

Too close to the edge and the material between the hole and the edge will shear or bow outward. Minimum hole-to-edge distance:

• Minimum: 1.5 × t from hole edge to part edge
• Recommended: 2.0 × t for production stability

For 1.5mm material: minimum 2.25mm from hole edge to part edge. Tight quarters here means intermittent edge distortion and higher scrap rates.

Hole-to-Hole Distance

Adjacent holes share the same strip of material between them. Too close and you get deformation, misalignment, or strip breakage.

• Minimum hole-to-hole distance (edge to edge): 2.0 × t
• For stainless or hard materials: 2.5–3.0 × t

Hole-to-Bend Distance

Holes placed too close to a bend line distort during forming—the hole elongates into an oval as the bend displaces material.

• Minimum hole-to-bend distance: 2.0 × t + bend radius
• Example: 1.5mm steel, 2.0mm radius → minimum = 2×1.5 + 2.0 = 5.0mm from hole center to bend line

If your design requires a hole closer to the bend, options are: pierce after forming (adding a secondary operation), use a relieved punch that accounts for the distortion, or redesign the geometry.

Slot and Notch Rules

Slots (elongated holes) and notches have additional constraints beyond round holes.

Slot width: Same as minimum hole diameter—1.0× t minimum for steel.

Slot length-to-width ratio: Slots with L/W > 10:1 stress the punch severely. The punch bends under lateral load. Limit to 8:1 or add pilot holes at slot ends to reduce stress concentration.

Corner radii in slots: Sharp internal corners concentrate stress in the die and cause premature cracking. Specify a minimum internal corner radius of 0.5× t. A “square” internal corner is not manufacturable at high volumes without frequent die maintenance.

Notch relief: Where two bend lines meet at an internal corner, add a notch relief hole at the corner intersection. Without it, the material tears unpredictably. Standard notch relief diameter: 1.0–2.0× t.

Tolerance Specifications: What Precision Actually Costs

Standard commercial stamping tolerances are often tighter than engineers realize—and tighter specifications than needed add real cost. Before specifying a tolerance, ask: what assembly function does this tolerance serve?

Typical achievable tolerances in production stamping:

What “Precision Grade” actually means in practice: more frequent die maintenance, tighter coil tolerance, 100% inspection instead of AQL sampling, slower press speeds, and a piece price typically 25–50% higher.

What to avoid:

• Specifying tight tolerances on non-critical features
• Mixing tight tolerances (±0.05mm holes) with loose tolerances (±0.3mm bends) on the same datum—the datum reference becomes ambiguous
• Tight angular tolerances on multi-bend parts where cumulative springback is inherent

If you are unsure what tolerance is achievable for your geometry, discuss it with your supplier before finalizing the drawing. A 10-minute conversation can prevent a $15,000 tooling redesign.

Designing for Progressive Die vs. Single-Hit Operations

The die type fundamentally changes your design freedom. Understanding the difference helps you design correctly from the start.

Progressive die stamping feeds a strip of material through a series of stations. Each station performs one operation (pierce, form, trim, coin). The part is still connected to the strip until the final cutoff station.

Constraints specific to progressive die design:

• Strip width and pilot holes: The strip must have pilot holes for accurate registration at each station. Pilot hole location must be on the strip carrier, not the part itself.
• Part orientation in strip: Parts are nested in the strip to minimize material waste. Complex geometries may require non-obvious orientations that affect where features can be placed.
• Minimum web width (material between parts in strip): Typically 1.5–2.0× t. Too narrow and the strip tears; too wide and you waste material.
• Feature sequencing: Features that interfere with later forming operations must be punched after forming, not before. Plan the sequence.

Single-hit (compound) die: The entire part profile and all features are cut in one press stroke. Suitable for flat, simple geometries. Tighter tolerances achievable (no progressive registration error). No carrier strip geometry constraints.

Transfer die: Similar to progressive, but the part is transferred between stations by mechanical transfer fingers (not the strip carrier). Allows more complex forming than progressive. Used for deeper drawn parts.

For most OEM stamped parts in the 0.5–3.0mm thickness range, progressive die is the most cost-effective at volumes above 50,000 pieces/year. The setup time is higher, but per-piece cost drops significantly compared to single-hit or transfer die at volume.

Common Design Mistakes and How to Fix Them

Mistake 1: Uniform thin walls with sharp transitions A part with 1.0mm wall and a 90° sharp corner adjacent to a 5.0mm deep feature concentrates stress at the corner. Fix: add a fillet radius (minimum 1.0mm) at the transition, or redesign to avoid the deep feature adjacent to a thin wall.

Mistake 2: Embosses placed too close to holes or edges Embossing displaces material laterally. If a hole or edge is within 3× t of the emboss, the displaced material distorts the feature. Fix: maintain minimum 3× t clearance between emboss center and any hole or edge.

Mistake 3: Very long, thin tabs A tab with L/W > 5:1 will spring, vibrate, and produce inconsistent dimensions. Fix: add stiffening ribs to long tabs, or redesign to limit L/W to 3:1.

Mistake 4: Relying on stamping to achieve tight flatness on large parts Large thin sheet (>300mm × 300mm, < 1.5mm thick) is inherently difficult to keep flat through stamping and handling. Fix: add stiffening beads or ribs in the design, or accept a flatness specification consistent with the process capability.

Mistake 5: Mirrored left/right parts without checking die implications If you need a left-hand and right-hand version, check whether the features are truly symmetric. Often one version requires a separate tool or a flip operation—both add cost. Fix: design parts to be self-symmetric if function allows.

DFM Checklist for Metal Stamping Projects

Use this before releasing any stamping drawing:

Material

• [ ] Material formability confirmed for all bend and draw operations
• [ ] Coil thickness tolerance included in tolerance stack-up
• [ ] Grain direction specified if bend radius is near minimum

Holes and Slots

• [ ] All hole diameters ≥ 1.0× t (steel) or ≥ 0.8× t (aluminum)
• [ ] Hole-to-edge distance ≥ 1.5× t
• [ ] Hole-to-hole distance ≥ 2.0× t
• [ ] Hole-to-bend distance ≥ 2× t + bend radius
• [ ] Slot L/W ratio ≤ 8:1
• [ ] Internal corners have minimum radius ≥ 0.5× t

Bends

• [ ] All bend radii ≥ minimum for material/temper/direction
• [ ] Springback compensation noted (overbend angle specified)
• [ ] Notch relief holes at internal corners of bends

Tolerances

• [ ] All tolerances are functionally justified (not tighter than needed)
• [ ] Datum references are consistent across views
• [ ] Flatness spec is consistent with part size and thickness

Die type and volume

• [ ] Die type (progressive / single-hit / transfer) confirmed for volume
• [ ] Strip layout discussed with supplier (progressive die)
• [ ] Secondary operations identified and costed

General

• [ ] No features that require punching from >1 direction in single setup
• [ ] Emboss/rib clearances from holes and edges ≥ 3× t
• [ ] Part reviewed with stamping supplier before tooling release

What DFM Review Looks Like in Practice

When you send us an RFQ with a drawing, our engineering team does an informal DFM review as part of quoting. We flag features that will increase tooling cost, reduce die life, or create production quality issues.

This is not a gate—we will quote what you have drawn. But the notes we send back often allow designers to make small changes (move a hole 2mm, add a radius, change a tolerance) that reduce piece price by 15–30% without changing function.

The best DFM reviews happen when the supplier sees the part before the drawing is released—not after. If you are designing a new component, send us the concept CAD early. We can tell you in one email whether your geometry is going to cause problems in tooling.

A stamped part is ultimately a collaboration between the designer’s geometry and the die maker’s manufacturing constraints. The earlier those two conversations happen, the better the outcome for both sides.

Send us your drawing for a free DFM review. Or learn how stamping cost is calculated before you finalize your design.
