Metal stamping is a manufacturing process that uses dies and stamping presses to convert flat sheet metal into specific shapes and forms. It is one of the most cost-effective and widely used metal forming techniques in modern manufacturing, producing everything from tiny electronic contacts measuring a few millimeters to large automotive body panels spanning several feet. If you are an engineer, product designer, or procurement professional evaluating manufacturing methods for your metal components, understanding how metal stamping works will help you make better decisions about part design, material selection, and supplier selection.

How Does Metal Stamping Work?

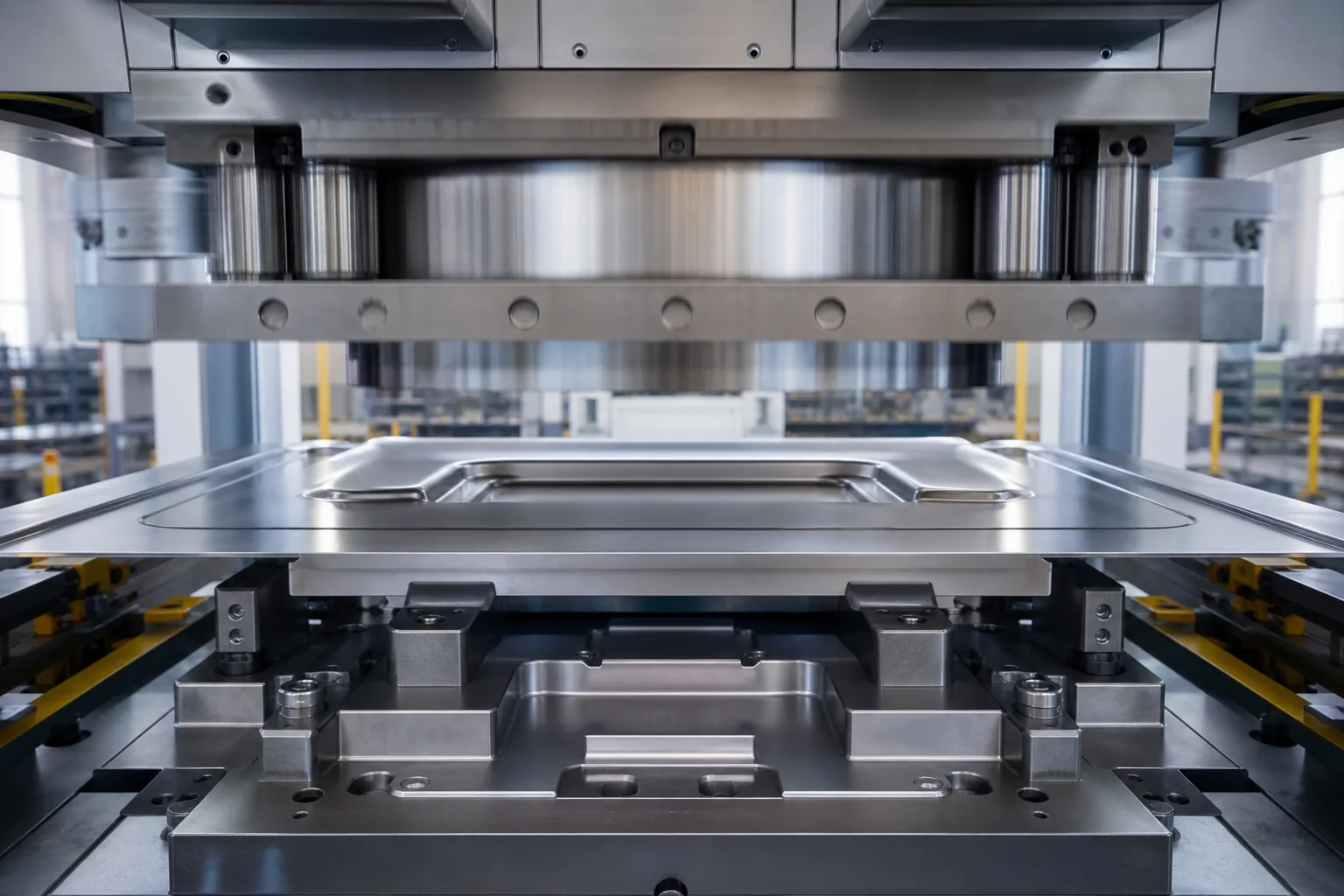

The metal stamping process begins with a flat sheet or coil of metal stock. This raw material is fed into a stamping press — a machine that applies tremendous force through a ram mechanism — where a tool and die surface forms the metal into the desired shape. The die is a custom-machined tool that acts as a mold: the upper die (punch) pushes the metal into the lower die (cavity) to create the part geometry.

Depending on the part complexity, stamping may involve a single operation or a series of stages. Simple parts like flat washers or brackets may require only one or two operations, while complex components like electrical connectors or automotive structural parts may require ten or more sequential stamping operations performed in a progressive die.

The key parameters in metal stamping include:

• Press tonnage — the force capacity of the stamping press, typically ranging from 25 tons for small parts to 600+ tons for large structural components
• Stroke rate — the number of press cycles per minute, ranging from 30 SPM for heavy forming to 1,500+ SPM for high-speed progressive stamping
• Material thickness — the gauge of the sheet metal, typically from 0.004 inches (thin foil) to 0.500 inches (heavy plate)
• Tolerances — the acceptable dimensional variation, typically ±0.001 inches to ±0.005 inches for precision stamping

Types of Metal Stamping Processes

Progressive Die Stamping

Progressive die stamping uses a series of stations within a single die. A continuous metal strip feeds through the die, advancing to the next station with each press stroke. Each station performs a different operation — blanking, piercing, bending, forming — and the finished part is separated from the strip at the final station. This process is continuous and highly automated, making it the most efficient method for high-volume production of complex parts. Learn more about our progressive die stamping services.

Deep Draw Stamping

Deep draw stamping transforms flat blanks into deep, hollow shapes like cups, cans, and enclosures. The punch pushes the metal blank into a die cavity, drawing the material into a three-dimensional shape. When the depth of the formed part exceeds its diameter, the process is classified as deep drawing. This technique produces seamless parts without welded joints, offering superior structural integrity. Read our detailed guide on deep draw metal stamping.

Transfer Die Stamping

Transfer die stamping uses individual blanks that are mechanically transferred between separate die stations. Unlike progressive stamping, the part is not connected to a carrier strip, allowing for larger and deeper formed parts. A mechanical transfer system (fingers or robots) moves each part from station to station. This process is suited for medium to large parts that require multiple forming stages.

Compound Die Stamping

Compound dies perform two or more operations simultaneously in a single press stroke — typically blanking and piercing at the same time. This produces parts with superior flatness and concentricity compared to progressive stamping, making compound dies ideal for flat washers, spacers, and parts requiring tight concentricity between inner and outer features.

Fourslide / Multi-Slide Stamping

Fourslide stamping uses four sliding tools arranged around a central workpiece to form complex bends and shapes from wire or narrow strip stock. This process excels at producing small, intricate parts with multiple bends — clips, springs, contacts, and connectors — often at lower tooling costs than progressive dies.

Common Metal Stamping Operations

Within the broader categories above, metal stamping encompasses several specific forming operations:

• Blanking — cutting flat shapes from sheet metal using a punch and die set
• Piercing — creating holes, slots, and cutouts in the workpiece
• Bending — forming angles, channels, and V-shapes along a straight axis
• Forming — creating complex three-dimensional shapes with curves and contours
• Coining — precision compressive forming that produces very tight tolerances and fine detail
• Embossing — creating raised or recessed features, text, or patterns in the metal surface
• Drawing — pulling flat metal into a cup or box shape (shallow draw or deep draw)
• Ironing — reducing and uniforming wall thickness during the drawing process
• Flanging — bending the edge of a part to create a lip or flange for assembly

Materials Used in Metal Stamping

Almost any ductile metal can be stamped, but the most common materials include:

• Carbon Steel — the most commonly stamped material, offering excellent strength and formability at low cost. Common grades include 1008, 1010, 1018, and 1020. Available in cold rolled (smooth, tight tolerances) and hot rolled (cost-effective, thicker gauges) forms.
• Stainless Steel — provides corrosion resistance for medical, food, marine, and chemical applications. Grades 304 and 316 are most common. Stainless requires higher forming forces and specialized tooling due to its work-hardening characteristics. See our stainless steel stamping capabilities.
• Aluminum — lightweight with excellent corrosion resistance and thermal/electrical conductivity. Popular for aerospace, automotive weight reduction, and electronics heat management. See our aluminum stamping services.
• Copper and Brass — excellent electrical conductivity makes these materials the top choice for electrical contacts, connectors, and bus bars. Copper C110 and brass C260 are the most commonly stamped grades.
• Specialty Alloys — beryllium copper (high strength + conductivity), phosphor bronze (springs), Inconel (high temperature), and titanium (aerospace) for specialized applications.

Applications of Metal Stamping

Metal stamping parts are found in virtually every industry. Here are some of the most common applications:

• Automotive — structural brackets, seat components, electrical terminals, clips, retainers, fuel system parts, brake hardware
• Aerospace — structural fittings, shielding, brackets, fasteners, and flight-critical stamped components
• Electronics — connector contacts, EMI/RFI shielding, heat sinks, battery contacts, LED lead frames
• Medical Devices — surgical instrument components, implant parts, device housings, and precision springs
• Construction — joist hangers, structural connectors, anchor plates, and architectural hardware
• Appliances — motor laminations, housing components, brackets, and internal structural parts
• Energy — solar panel mounting hardware, battery components, electrical distribution parts

Advantages of Metal Stamping vs. Other Manufacturing Methods

Compared to CNC machining, casting, or fabrication, metal stamping offers several significant advantages for appropriate applications:

• Lower per-part cost at volume — once tooling is built, per-part costs are minimal, making stamping the most economical process for quantities above 5,000-10,000 parts
• High production speed — progressive dies produce hundreds to thousands of parts per hour with minimal operator intervention
• Excellent repeatability — every part from a stamping die is dimensionally identical, eliminating the piece-to-piece variation common in manual processes
• Material efficiency — strip layout optimization minimizes material waste compared to machining from solid stock
• No material removal — unlike machining, stamping forms the material rather than cutting it away, preserving grain structure and mechanical properties

How to Choose a Metal Stamping Manufacturer

When selecting a metal stamping partner for your project, consider these key factors:

• Experience with your material and part type — ask for examples of similar parts they have produced
• In-house tooling capabilities — manufacturers who build their own dies have better control over quality, lead time, and cost
• Quality certifications — ISO 9001 is the baseline; IATF 16949 for automotive, AS9100 for aerospace
• Engineering support — DFM consultation, stamping simulation, and prototype capabilities
• Production capacity — press tonnage range, coil handling, and annual capacity to meet your volume requirements
• Secondary operations — in-house welding, tapping, plating coordination, and assembly reduce supply chain complexity

Looking for a reliable metal stamping manufacturer? Contact our team for a free quote and engineering consultation. We respond to all inquiries within 24 hours.
