Metal Stamping Tolerances: Standard, Precision, and How to Specify Them

Tolerance is where part drawings meet reality—and where engineers and toolmakers either align or begin arguing about what “achievable” means.

Most engineers understand tolerance conceptually. Fewer understand how tolerances interact with process variables in metal stamping specifically: press repeatability, die wear progression, material thickness variation, springback, and the difference between a feature formed in one hit versus one assembled from multiple operations.

This guide covers the numbers. Standard tolerances, precision tolerances, what drives them, what tightening them costs, and—critically—how to specify them correctly so your drawing communicates intent rather than wishful thinking.

---

What Are Metal Stamping Tolerances?

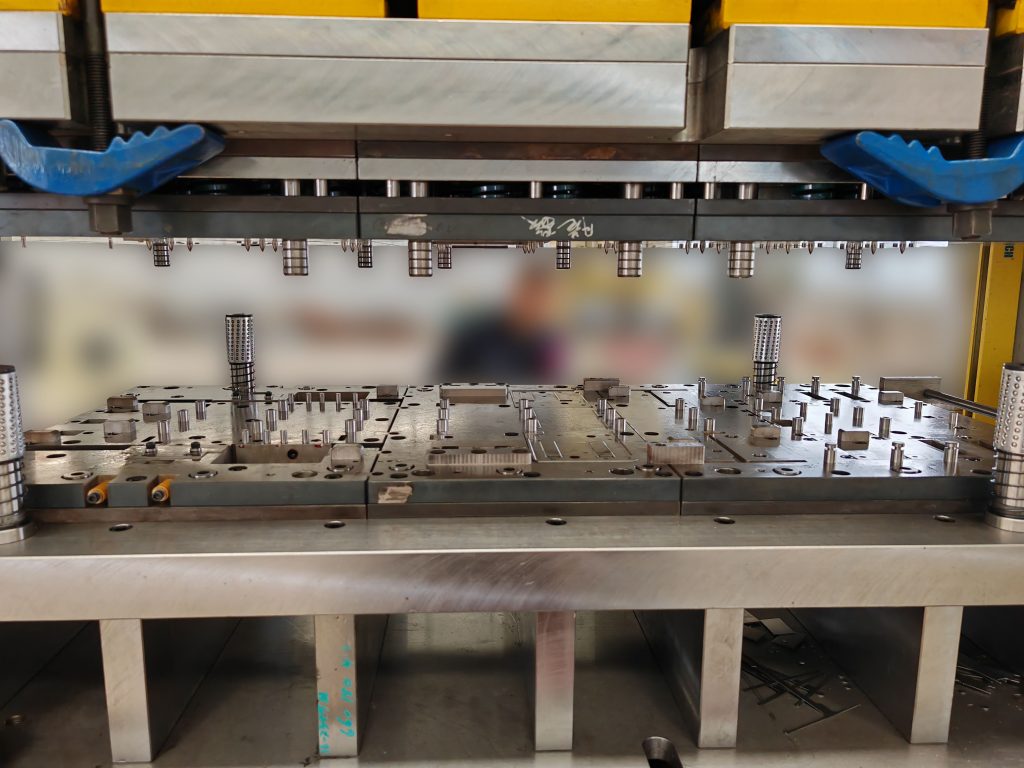

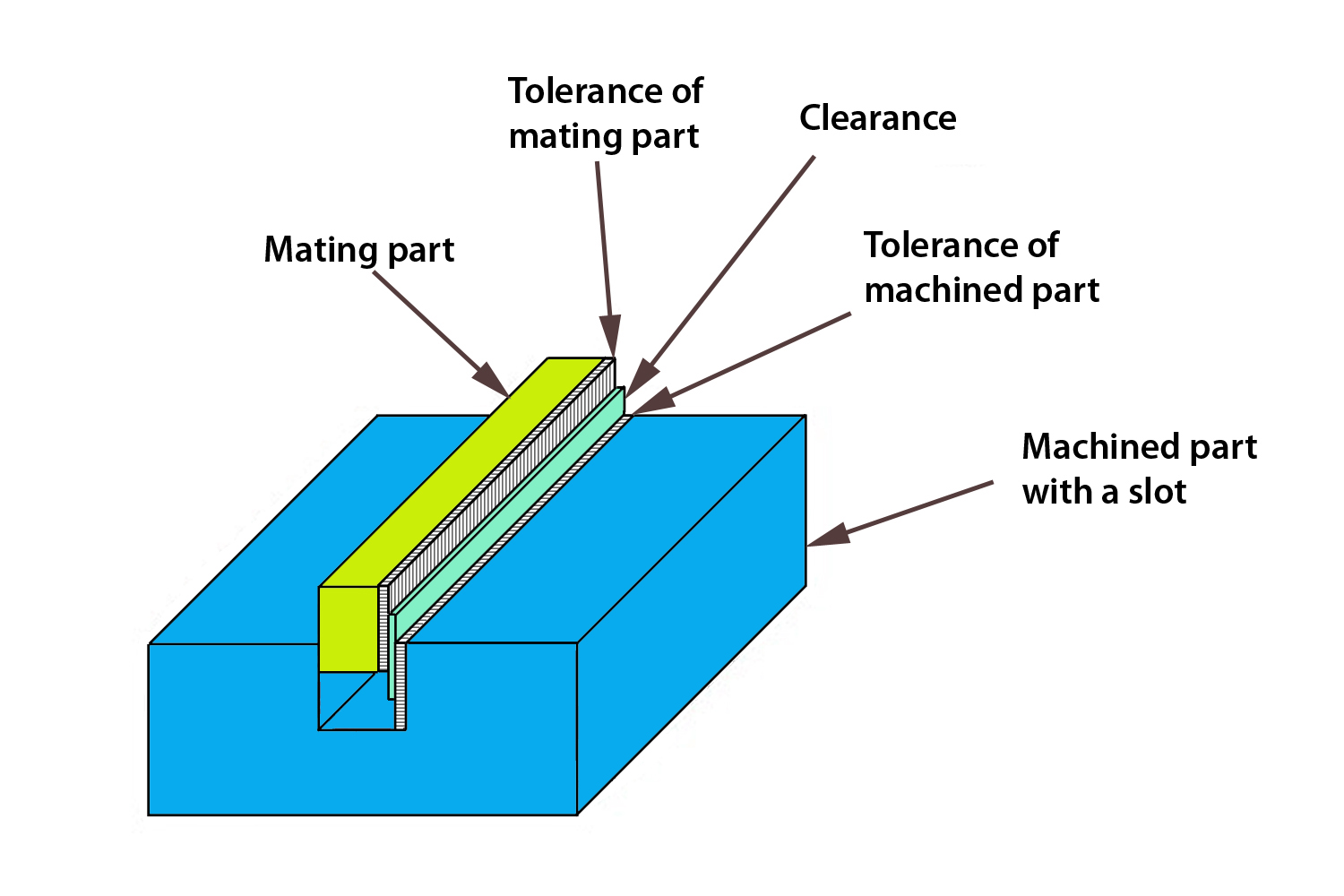

A tolerance defines the acceptable range of dimensional variation for a manufactured feature. On a stamping drawing, you might specify a hole diameter of 6.00 ± 0.05 mm. This means any hole between 5.95 mm and 6.05 mm is conforming. Any hole outside that range requires disposition—rework, sort, scrap, or engineering review.

Tolerances in stamping exist because no manufacturing process is perfectly repeatable. Press ram deflection, die face wear, lubricant film variation, coil thickness deviation, and thermal expansion all introduce dimensional scatter. Tolerances set the boundaries within which that scatter is acceptable.

The critical mistake engineers make: specifying tolerances based on the precision they want rather than the precision the process can sustain. Tighter tolerances do not come free. They require better tooling, more frequent die maintenance, additional inspection steps, and often slower press speeds. The result is higher piece price—sometimes dramatically higher.

---

Standard vs. Precision Tolerances: The Practical Division

The industry commonly divides stamping tolerances into two tiers:

Standard tolerances are achievable with well-maintained production tooling and no special process controls. These are the defaults you use when the dimensional variation doesn’t affect function.

Precision tolerances require tighter die construction, in-process gauging, and controlled press conditions. They cost more to hold and should only be specified where function genuinely demands them.

Standard Tolerance Reference Table

Feature Type	Standard Tolerance
Blanked hole diameter	± 0.10 mm
Blanked edge-to-edge distance	± 0.15 mm
Formed feature height	± 0.25 mm
Bend angle	± 1.0°
Flatness (100mm span)	± 0.30 mm
Flange length	± 0.30 mm
Deep draw diameter	± 0.15 mm
Deep draw height	± 0.30 mm
Emboss height	± 0.15 mm
Progressive strip pitch	± 0.05 mm

Precision Tolerance Reference Table

Feature Type	Precision Tolerance
Blanked hole diameter	± 0.025–0.05 mm
Blanked edge-to-edge distance	± 0.05–0.08 mm
Formed feature height	± 0.10–0.15 mm
Bend angle	± 0.25–0.5°
Flatness (100mm span)	± 0.10–0.15 mm
Flange length	± 0.10–0.15 mm
Deep draw diameter	± 0.05–0.10 mm
Progressive strip pitch	± 0.02–0.03 mm

These precision ranges assume: fresh die with controlled clearances, CMM-verified tooling, coil thickness tolerance ≤ ±3%, and controlled lubrication. Production drift toward the looser end of the range is normal as dies wear.

---

Tolerance by Operation: What Each Process Can Hold

Different stamping operations have different precision floors. Understanding this prevents specifying blanked-hole-level tolerances on formed features.

Blanking and Piercing

Blanking produces the most dimensionally consistent features in stamping because the punch-to-die clearance directly determines hole size and the cut is completed in a single stroke.

Hole diameter tolerance is primarily controlled by punch diameter and die clearance. A well-ground punch held in a precision die block can hold ± 0.02 mm on diameter through a production run.

Burr height is a tolerance concern often overlooked on drawings. Standard: ≤ 0.10 mm (≈10% of material thickness). Precision: ≤ 0.05 mm. Functional assemblies with sealing surfaces or sliding fits often need explicit burr specifications.

Edge roughness (rollover, burnish zone, fracture zone): the burnish zone typically represents 30–40% of material thickness with conventional clearances. Shaving operations can extend burnish to 100% for better surface finish and tighter diameter control, at added cost.

Bending

Bending is the hardest operation to hold tight tolerances on because springback varies with:

• Material yield strength lot-to-lot variation (can be ±10% on commercial strip)
• Thickness variation within the coil
• Lubrication consistency
• Die wear (radius wear changes the formed angle)

Practical bend angle tolerance: ± 1.0° standard; ± 0.3–0.5° with overbend compensation and in-die gauging.

Springback compensation is built into the die, not specified on the drawing. When you specify ± 0.25° on a bend angle, you are requiring the toolmaker to tune overbend until that consistency is achieved—which is expensive.

Flange length tolerance: depends on material thickness, blank cut position accuracy, and die geometry. Standard: ± 0.30 mm. Precision: ± 0.10 mm requires a reference datum from the bent edge.

Deep Drawing

Deep drawing introduces the most process variables: material flow from the flange, wall thinning, earing from anisotropy, and flange wrinkling versus fracture balance.

Diameter tolerance on drawn shells: ± 0.10–0.15 mm standard. This is controlled by punch diameter plus die clearance.

Wall thickness variation: commercial deep draw allows ±15% of nominal wall thickness due to thinning. This is rarely toleranced on drawings but can matter for pressure vessel applications.

Height tolerance: ± 0.30–0.50 mm standard because material earing (height variation around the circumference due to crystallographic anisotropy) is difficult to eliminate without ironing operations.

Progressive Die Operations

Progressive die operations add one critical variable: strip progression accuracy. Each station downstream depends on the strip advancing exactly the programmed pitch.

Pitch tolerance: ± 0.03–0.05 mm for standard work; ± 0.01–0.02 mm for precision connector or terminal work. Servo feeds with optical detection achieve the tighter range.

Relative position between blanked holes and formed features (accumulated pitch tolerance): this is often the most critical dimension on a progressive part. For a 10-station die with ± 0.03 mm pitch tolerance per station, worst-case accumulated error could be ± 0.30 mm—unless you use a pilot pin to relocate the strip at each station (standard practice, reduces accumulated error to ± 0.03–0.05 mm for the piloted features).

---

What Drives Tolerance: The Five Process Variables

Understanding these variables lets you write specifications that are achievable—and lets you identify which tolerances are genuinely constrained by function versus inherited from drawing templates.

1. Material Thickness Variation

Commercial coil steel (ASTM A1008) specifies ± 10% on thickness. Aluminum coil is similar. Thicker material bends differently, blanks with different clearance behavior, and draws with different force requirements.

If your tolerance stack-up assumes nominal material thickness, you have a hidden tolerance contributor of ±10%. Order tighter-thickness-tolerance coil (≤ ±3%) for precision work, or account for it explicitly in your tolerance budget.

2. Die Clearance and Condition

Punch-to-die clearance for blanking is typically specified as a percentage of material thickness: 5–10% per side for steel, 3–6% for aluminum, 10–15% for stainless steel. As dies wear, clearance opens—hole diameters grow, burr heights increase, cut quality degrades.

A new die may hold ± 0.03 mm on a hole diameter. After 500,000 hits, without resharpening, the same die may produce ± 0.08 mm. Your tolerance must be achievable across the intended die life, not just on the first part.

PM schedule matters: a precision stamping program must include defined resharpening intervals and dimensional verification checkpoints. Without them, tolerance specifications written for day-one tooling become unachievable by day 100.

3. Press Repeatability

Hydraulic presses are more repeatable in stroke-controlled operations but slower. Mechanical presses are fast but bottom-dead-center position varies with press temperature and connection rod wear.

Ram repeatability specification: precision stamping presses typically specify ≤ 0.01 mm ram repeatability. High-speed presses for terminal work can achieve ≤ 0.005 mm with proper maintenance.

Bed deflection: a 200-ton press under 200 tons of load does not have a perfectly flat bed. Bed deflection can add 0.05–0.15 mm of part-to-part variation on large stampings, which is why die shims and die spotting are used to compensate.

4. Material Springback

Every bend results in elastic recovery after the punch retracts. Springback angle depends on:

• Material yield strength (higher = more springback)
• Part radius-to-thickness ratio (larger r/t = more springback)
• Die geometry (V-die vs. wiping die vs. bottoming vs. coining)

Coining eliminates springback by inducing compressive stress through the full material thickness at the bend zone. It is expensive (requires 3–5× the blanking force) but produces repeatable bend angles to ± 0.1–0.2°.

For stainless steel 304 with r/t = 2, springback is typically 4–7°. For C11000 copper at the same r/t, it is 1–3°. This is a significant process variable that must be compensated in the die, not tightened in the specification.

5. Lubrication

Lubricant film thickness affects blank holder force, material flow in drawing, and friction in progressive dies. Inconsistent lubrication creates part-to-part variation that mimics tolerance exceedances but is actually process instability.

Precision stamping operations use controlled application systems (roll coaters, electrostatic sprayers) rather than hand swabbing. If your supplier uses a brush to apply oil before every hit, ask about their SPC data for that operation.

---

GD&T for Stamped Parts: What Works and What Doesn’t

Geometric Dimensioning and Tolerancing (GD&T) applies to stamped parts, but some controls work better than others in the context of sheet metal.

Controls That Work Well

Position (⊕): excellent for locating holes relative to a datum. Since holes are blanked in single operations or controlled by progressive pitch, position is a natural control. True position of ± 0.10 mm is achievable as a standard tolerance on pierced holes.

Perpendicularity (⊥): valid for extruded features or drawn shells where squareness to the base plane matters.

Parallelism (//): useful for parallel flange faces where assembly requires consistent gap.

Controls That Require Careful Application

Flatness (⏥): sheet metal parts relax after leaving the die, and gravity and fixturing affect flatness measurement. Specify a measurement datum and fixture condition (free-state vs. constrained) explicitly.

Profile of a Surface (⌒): appropriate for complex formed surfaces but requires CMM measurement, adding inspection cost. Reserve it for functional surfaces.

Controls That Are Often Over-Specified

Cylindricity (⌀ cylindricity): almost never appropriate for drawn shells, which are not true cylinders. Use diameter tolerance instead.

Angularity tighter than ± 0.25°: this requires coining, which may not be in the original process plan. If you specify ± 0.1° on a bend angle without discussion, expect either a process deviation or an RFQ that comes back with a coining surcharge.

---

How Tighter Tolerances Affect Cost

The cost impact of tolerances in stamping is not linear. It follows a step function based on what process changes are required.

Tolerance Range	What’s Required	Cost Impact
Standard (± 0.10–0.30 mm)	Normal production tooling and process	Baseline
Moderate (± 0.05–0.10 mm)	Tighter die construction, regular PM schedule	+15–30%
Precision (± 0.025–0.05 mm)	Ground punch sets, in-die sensing, CMM verification lots	+30–80%
Ultra-precision (< ± 0.025 mm)	Specialized tooling, 100% inspection, controlled environment	+100–200%+

The leverage point is how many features require tight tolerance. A part with 20 dimensions where 18 are at standard and 2 are precision costs almost the same as a standard part. A part where 15 of 20 dimensions are specified at precision tolerance is fundamentally a different product requiring different tooling, inspection, and process controls.

This is why design reviews matter: identifying which dimensions are functionally critical versus which were inherited from a default tolerance block. For guidance on designing to achievable tolerances from the start, see our metal stamping design guidelines.

---

Inspection Methods: Matching the Method to the Tolerance

Inspection method choice affects your measurement uncertainty—and if your gauge R&R (repeatability and reproducibility) is too high relative to the tolerance, you cannot reliably accept or reject parts.

Rule of thumb: the inspection system should consume no more than 10–30% of the tolerance range in measurement uncertainty (the “10:1 gauge ratio” guideline, now revised to accept up to 30% for many applications).

Optical Comparator

Suitable for: 2D profiles, hole positions, edge-to-edge distances on flat parts. Measurement uncertainty: ± 0.01–0.025 mm depending on magnification and calibration. Use for: standard tolerance verification on blanked features.

CMM (Coordinate Measuring Machine)

Suitable for: 3D feature verification, true position, complex profile. Measurement uncertainty: ± 0.002–0.005 mm for contact CMM; ± 0.005–0.010 mm for optical CMM. Use for: precision tolerance verification, first-article inspection (FAI), statistical process control sampling.

Go/No-Go Gauges

Suitable for: high-volume verification of single features (hole diameters, slot widths, formed heights). Measurement uncertainty: depends on gauge tolerance (typically ±10% of part tolerance per ISO 286). Use for: 100% inspection of critical features in production without slowing line rates. Limitation: Go/No-Go gauges verify acceptance—they do not provide dimensional data for SPC.

Vision Systems (In-Line)

Suitable for: 100% inspection of hole positions, outer profiles, feature presence/absence in progressive die operations. Measurement uncertainty: ± 0.005–0.020 mm depending on resolution and calibration. Use for: connector terminals, electronic components, safety-critical features requiring 100% inspection.

Laser Scanning / Blue-Light Structured Light

Suitable for: full 3D surface comparison to CAD model, complex formed surfaces. Measurement uncertainty: ± 0.02–0.05 mm typical. Use for: first-article on deep-drawn or complex formed parts; catching springback deviation across full part surface.

---

How to Specify Tolerances Correctly on Drawings

Poorly written tolerance specifications are one of the most common sources of supplier disputes and incoming inspection failures. Here is how to write them clearly.

Use a Title Block Tolerance Table for Non-Critical Features

Your title block should specify default tolerances for features without explicit tolerances:

UNLESS OTHERWISE SPECIFIED:
2-place decimals: ± 0.XX mm
3-place decimals: ± 0.0XX mm
Angles: ± 1.0°

These become the standard tolerances for non-critical dimensions. Only dimensions that differ from these need explicit callouts.

Call Out Critical Tolerances Explicitly

For dimensions that matter functionally, add explicit tolerances directly on the feature:

• Ø 6.00 +0.05/-0.00 (press-fit hole with unilateral tolerance)
• 25.0 ± 0.05 (bilateral on a locating slot)
• 90° ± 0.5° (on a formed bend angle)

Unilateral tolerances (+0.05/-0.00) communicate which direction the process should run to avoid scrap: easier to hold close to the minus side on a punched hole (hole grows as punch wears).

Specify the Measurement Datum

“Flatness ≤ 0.15 mm” means nothing without specifying how the part is fixtured during measurement. Add:

• “Measured in free state” for sheet metal that deforms under its own weight
• “Clamped to datum A (bottom face)” for functional assembly conditions

Note Process-Dependent Dimensions

For dimensions controlled by springback (bend angles), note the measurement condition and whether re-striking is required:

• “90° ± 0.5° (measured at room temperature, free state, after 24-hour stabilization)”

For drawn cups with earing, note whether the height dimension is measured on the shortest earing or is an average.

Include Inspection Reference on the Drawing

Specify the acceptance standard:

• “Inspection per ASME Y14.5-2018” (GD&T standard)
• “Dimensional acceptance per DIN 7168 f (fine)” (German/ISO standard)
• “First article inspection per AS9102B” (aerospace FAI)

This prevents ambiguity when supplier and buyer interpret tolerance callouts differently.

---

Specifying Tolerances for Different Material Families

Tolerance achievability varies by material. What is standard for mild steel may require a precision process for stainless or aluminum.

Low-carbon steel (1008/1010/1018): the most predictable material in stamping. Springback is low, work-hardening behavior is well-characterized. Standard tolerances are straightforwardly achievable.

Stainless steel 304/316: higher springback (3–7° per bend for 90° bends), higher press force, faster die wear. Budget ± 0.5° on bend angles minimum, and expect tighter blanking tolerances to cost more due to die wear rate. Our stainless steel stamping program uses nitrogen-gas springs and overbend compensation to manage these variables.

Aluminum alloys (1100, 3003, 5052): moderate springback, excellent formability. 6061-T6 is more challenging—requires larger bend radii and exhibits more springback variability than annealed alloys. Die clearances are tighter than steel (3–6% vs. 5–10%) for clean blanking. See aluminum stamping for grade-specific capability data.

Copper (C11000, C26000): excellent formability, low springback (1–3°), predictable behavior. Work-hardens rapidly in drawing operations, which must be accounted for in multi-draw sequences. Copper stamping tolerances for blanked holes typically run tighter than steel equivalents because of the material’s low springback.

Brass (C26000, C36000): similar behavior to copper. C36000 (free-cutting brass) has lower ductility and is less formable than C26000 cartridge brass. Brass stamping for precision connectors and terminals commonly specifies ± 0.03 mm on blanked features.

---

Working With Your Supplier on Tolerances

The most effective tolerance discussion happens before the drawing is finalized—not after the tooling is cut.

Request a DFM review: any supplier capable of precision stamping should review your drawing before quoting and flag dimensions where the specified tolerance requires process steps not included in the standard scope. If your supplier never raises tolerance concerns at quote, they either have very flexible processes or they are planning to disposition parts that don’t conform.

Ask for process capability data (Cpk): for critical tolerance features, ask what Cpk the supplier typically achieves on similar dimensions. Cpk ≥ 1.33 (4-sigma) is the standard minimum; Cpk ≥ 1.67 (5-sigma) is required for automotive PPAP Level 3. If they cannot provide data, ask how they know they can hold the tolerance.

Define the inspection plan together: agree on which dimensions require 100% inspection vs. statistical sampling, what gauging is used, and at what lot size. This prevents disputes at receiving inspection when a batch of parts is rejected on a dimension neither party prioritized during supplier qualification.

Discuss tolerance across die life: a tolerance achievable on the first production run may not be achievable after 2 million hits on the same die set without resharpening. Clarify maintenance intervals and what dimensional drift is expected and acceptable over the tool life.

---

The Tolerance Specification Checklist

Before releasing a stamping drawing, verify:

• Title block default tolerances are specified and appropriate for non-critical dimensions
• All functionally critical dimensions have explicit tolerances with bilateral/unilateral specification as appropriate
• Bend angle tolerances are achievable without coining (or coining is specified as a required operation)
• Flatness, profile, and angular tolerances specify the measurement datum and fixture condition
• Material thickness tolerance is accounted for in the tolerance stack-up
• Burr height is specified if it affects function (sealing, sliding fit, assembly)
• Inspection standard or reference document is noted on the drawing
• A tolerance review was conducted with the toolmaker before the drawing was released

---

Frequently Asked Questions

What is a typical hole position tolerance for precision stamping? True position ± 0.05–0.10 mm is achievable as a standard precision tolerance for progressive die work. Ultra-precision connector work achieves ± 0.02–0.03 mm with servo feeds and in-die vision.

Can stamped parts hold tolerances comparable to CNC machining? On blanked features (holes, slots, profiles), yes—precision stamping can approach ± 0.02–0.03 mm, comparable to milling. On formed features (bends, draws), the answer is no: forming introduces springback and material flow variables that machining does not have. The right question is whether the formed dimension needs machining-level precision—and usually, functionally, it does not.

When should I specify GD&T on a stamping drawing? GD&T adds clarity when multiple interrelated features must relate to a common datum. Use it when: you have true position requirements for hole patterns, when flatness must be controlled relative to a mounting face, or when profile tolerances on complex forms are functionally critical. Avoid applying GD&T to every dimension—it adds inspection cost for dimensions that would accept standard title block tolerances.

What is the minimum achievable tolerance for a stamped bend angle? With coining (bottoming), ± 0.1–0.2° is achievable. With standard air bending and overbend compensation, ± 0.3–0.5° is typical for precision work. ± 1.0° is standard for non-critical bends.

---

Summary: Tolerance Decisions That Matter

Tolerances are design decisions, not formatting choices. The dimensions you call out tightly determine your tooling cost, your piece price, your inspection burden, and your supplier relationship.

Apply tight tolerances where function genuinely requires them. Use the standard tolerance table as your default. Work with your toolmaker before releasing the drawing. Understand that formed features (bends, draws) are fundamentally different from blanked features (holes, profiles) in their achievable precision—and specify accordingly.

For parts where tolerances interact with material selection, die type, and inspection strategy, our engineering team provides DFM review before quoting. Submit your drawing to request a quote or review our material-specific stamping capabilities to understand what our standard process can hold.

For design guidance that covers tolerances alongside bend radii, hole sizing, and feature geometry, see Design for Metal Stamping: DFM Guidelines.
