Metal Stamping vs. CNC Machining: Which Is Right for Your Parts?

Buyers often compare metal stamping and CNC machining as if they were interchangeable quoting options. They are not. They solve different manufacturing problems, and if you compare them only on unit price, you will usually make the wrong choice.

📖 Metal Stamping Process Overview — Read our metal stamping process overview to learn more about stamping vs CNC machining.

The short version is this: stamping rewards volume, process stability, and geometry that can be formed or cut efficiently from sheet or coil. CNC machining rewards flexibility, tight localized feature control, and lower-volume programs where tooling investment would be hard to justify.

That sounds obvious, but in real sourcing decisions the line gets blurred. A buyer has a bracket, shield, clip, cover, busbar, or precision plate and asks three suppliers for quotes. One proposes a progressive die. Another offers turret punch plus forming. A third suggests machining from plate stock. All three sound technically possible. Only one is likely to be commercially right.

The right choice depends on four things more than anything else: annual volume, part geometry, tolerance logic, and how stable the design is. If those four are misread, buyers either over-invest in tooling too early or stay in expensive machining mode long after the part should have moved to stamping.

This is why the best comparison is not “which process is better?” The better question is: what kind of manufacturing system does this part actually need?

These Two Processes Start From Different Manufacturing Logic

Metal stamping is a forming and cutting process. Material usually starts as sheet or coil, then moves through operations such as blanking, piercing, bending, embossing, coining, or progressive die forming. The system is designed to produce a lot of identical parts efficiently once the tooling and process are stable.

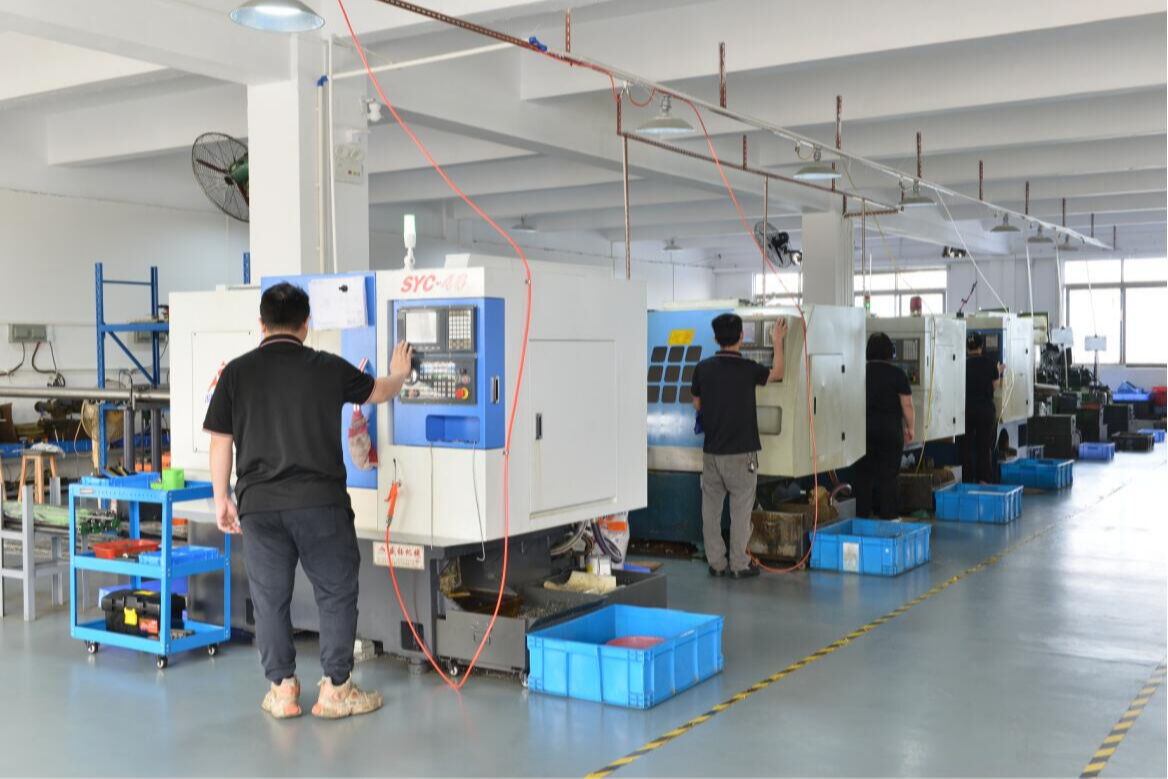

CNC machining is a subtractive process. Material starts as bar, plate, block, or occasionally a near-net blank, and machine tools remove material to create the final geometry. The system is designed to produce accurate parts with high feature flexibility, even when the geometry changes or volumes stay moderate.

That difference matters because the cost structure is completely different.

In stamping, you spend more up front on tooling, die development, setup validation, and sometimes gauges or fixtures. In return, the variable cost per part can become very low once the process is running well.

In CNC machining, upfront investment is lower, but each part keeps carrying machining time, tool wear, fixturing time, and material removal cost. That makes it easier to start quickly, but harder to win on unit economics at higher volumes.

So when buyers compare a machine stamp type keyword against CNC, they are often really comparing two manufacturing business models: front-loaded efficiency versus flexible repeatability.

Process Comparison: Forming vs. Material Removal

The best way to compare stamping and CNC is to stop thinking in general labels and start thinking in physical actions.

This table points to the real dividing line. If the part is fundamentally a sheet-metal geometry, forcing it into CNC can work technically but often makes little economic sense in production. If the part needs deep pockets, thick walls, complex 3D contours, or numerous machined datums, trying to stamp it is usually the wrong instinct.

A lot of quoting mistakes happen because buyers compare finished part appearance rather than manufacturing logic. A flat plate with holes may look machinable. A formed bracket may contain one tight machined bore. That does not mean the whole part should be machined. In many programs, the best answer is stamped base geometry plus secondary machining only where function demands it.

Cost Comparison by Volume: This Is Where the Break-Even Happens

If you remember one thing from this comparison, remember this: the process with the lower quote at 500 parts is often not the process with the lower cost at 500,000 parts.

That is because stamping and CNC scale very differently.

CNC cost is usually driven by machine time per part, setup frequency, operator loading, cutting tools, and material removal. The cost curve is comparatively linear. If you double the order size, the supplier may get some efficiency, but every part still needs machining time.

Stamping cost behaves differently. Tooling may cost several thousand to tens of thousands of dollars, but once the die is built and the strip layout is optimized, each additional part can become very cheap. At that point, the economics shift fast.

A simplified volume view looks like this:

These are not hard thresholds, but they are directionally useful.

The real break-even point depends on:

• tool cost and expected maintenance
• number of operations integrated in the die
• part thickness and material grade
• machining cycle time if made by CNC
• scrap rate and raw material utilization
• how often the design is expected to change

A buyer who wants a serious comparison should not ask only for unit price. Ask for a cost model at several annual volumes. Good suppliers can usually show when the crossover happens and why.

Precision Is Not One-Dimensional

One of the most persistent sourcing myths is that CNC is always more precise and stamping is always looser. Reality is more nuanced.

CNC machining is excellent for precise local features: bores, threads, milled flats, positional control between machined datums, and complex 3D surfaces. If your part function depends on those things, CNC has a structural advantage.

Stamping, however, can be extremely repeatable when the part geometry is suitable and the tooling is well built. For many hole patterns, profiles, formed tabs, and controlled bends, a good stamping process can hold consistency that is commercially more than adequate—and often superior in throughput stability.

The real question is not which process sounds more precise. The question is which dimensions actually matter.

For example:

• If the critical feature is a precision reamed bore relative to a milled face, CNC likely fits better.
• If the critical feature is repeatable hole location on a thin bracket at high volume, stamping may be the better system.
• If the part needs both, a hybrid process may be best.

This is why buyers should separate tolerance discussions into categories:

Saying “we need high precision” is too vague to guide process choice. Precision has to be tied to function.

Material Waste: Buyers Often Ignore This Until Pricing Gets High

Material economics can tilt the decision more than buyers expect, especially in stainless, copper alloys, aluminum, or thick specialty stock.

In CNC machining, waste appears as removed chips. Sometimes that is acceptable. Sometimes it is expensive. If the part starts from thick plate and most of that mass gets cut away, you are paying for material that never becomes product.

In stamping, waste is tied more to strip layout, web width, carrier design, hole spacing, and nesting efficiency. Good tooling design can reduce waste substantially, especially at scale.

Neither process automatically wins. A poorly designed strip layout can waste plenty of material. A near-net CNC blank can reduce chip loss. But for many thin-gauge parts, stamping is usually the better raw-material economics model once volume rises.

This matters most when the part is made from higher-cost metals. If you are quoting copper, brass, or stainless parts, a few points of material utilization difference can overwhelm what looked like a small unit-price gap.

Lead Time Comparison: Faster for Launch Is Not Always Faster for Program Life

Buyers often ask which process is faster. The honest answer is: faster for what stage?

CNC machining is usually faster to start. There is little or no dedicated tooling, programming can begin quickly, and first articles can often be produced in days rather than weeks. That makes CNC a strong option for prototypes, engineering builds, bridge quantities, and unstable designs.

Stamping usually takes longer to launch because tool design, fabrication, debug, and validation take time. For progressive tools, the front-end lead time can be significant.

But after launch, the picture reverses. Once a stamping process is stable, output is dramatically faster and more scalable than machining for many sheet-based parts.

A practical lead-time comparison looks like this:

This is why many mature sourcing strategies use both. CNC gets the design moving. Stamping takes over when the geometry and volume justify dedicated tooling.

If you want a separate discussion around early-stage tooling and bridge volumes, the site already has a related article on metal stamping prototyping.

When Stamping Is the Better Commercial Choice

Stamping is usually the better choice when the part is fundamentally a sheet-metal component and the demand is stable enough to reward tooling investment.

Typical green-light conditions include:

• annual volume is high or forecastable
• the design is mature enough to avoid frequent die changes
• the part geometry is based on profiles, holes, bends, tabs, or shallow forms
• low unit cost matters over long program life
• the buyer needs repeat supply at scale

This is especially true for brackets, clips, terminals, shields, retainers, covers, and many appliance, automotive, and electronics components.

The commercial advantage comes from system efficiency, not just process speed. One well-designed tool can reduce handling, stabilize quality, combine operations, and support much lower piece pricing over time.

For buyers already comparing process routes against total program cost, it also helps to review broader pricing logic in the site’s metal stamping cost factors guide.

When CNC Machining Is the Better Commercial Choice

CNC machining is usually the better choice when the design is still fluid, the volume is modest, or the functional geometry depends on material removal rather than sheet forming.

It is often the right answer when:

• annual demand is too low to recover tooling intelligently
• product revisions are still likely
• the part includes pockets, bosses, thick sections, or 3D surfaces
• the buyer needs fast samples or pilot quantities
• critical datums depend on machined relationships

This is why many buyers stay with CNC longer than they planned. They are not wrong to do so if the product is still changing.

The mistake is staying there after the design has stabilized and the volume has grown. That is where buyers quietly absorb avoidable cost year after year because nobody re-opened the make-process decision.

Hybrid Approaches Usually Beat Either-Or Thinking

Many real-world parts do not belong entirely to stamping or entirely to CNC.

A stamped blank may later receive machined bores, tapped features, countersinks, spotfaces, or datum-critical cleanup. A CNC-machined part may start from a stamped or laser-cut preform to reduce waste and cycle time. For demanding parts, hybrid manufacturing is often the most rational answer.

This is especially common when:

• the basic geometry is easy to stamp
• one or two features require tighter local control
• the buyer wants to lower material waste without losing functional accuracy
• a program is transitioning from prototype to production

Hybrid strategies can also reduce risk during program launch. Instead of waiting for a fully optimized progressive die, a supplier may use short-run blanking plus secondary machining to bridge early production needs.

That approach is often more commercially intelligent than arguing about which process is superior in theory.

The Right Decision Framework for Buyers

If you are choosing between a metal stamper machine style production route and CNC supply, do not ask suppliers for generic capability claims. Ask for structured comparisons.

A useful RFQ review should cover:

• expected annual volume by year, not just first order quantity
• design stability and likelihood of engineering changes
• which dimensions are truly critical to function
• material format and expected utilization
• tooling cost versus piece-price crossover point
• whether a hybrid route could lower total cost
• lead-time requirements at prototype, pilot, and production stages

A supplier that can only say “we can make it” is not helping you decide. A supplier that can explain where the cost crossover happens and which dimensions drive the process choice is much more valuable.

Final Take: Choose the Manufacturing System, Not the Buzzword

Metal stamping and CNC machining are not rivals in a simple sense. They are tools for different production realities.

Choose stamping when the part is sheet-based, the design is stable, and volume can pay back tooling. Choose CNC when flexibility, launch speed, or 3D feature control matters more than long-run piece price. Choose a hybrid route when the part clearly needs both.

The biggest mistake is not choosing the “wrong process” in theory. It is failing to revisit the process after the product matures. That is where sourcing teams leave money on the table.

If you are comparing options for a custom bracket, terminal, shield, enclosure, or formed precision component, send the drawing, annual usage, material grade, and key tolerances through our contact page and the process tradeoff can be evaluated against your actual program rather than general assumptions.

FAQ

Is metal stamping cheaper than CNC machining?

At low volumes, not always. CNC often wins early because there is little tooling investment. At medium to high volumes, stamping usually becomes cheaper for suitable sheet-metal parts because the tooling cost is spread across many units and cycle time per part is much lower.

Is CNC machining more precise than stamping?

For complex 3D features, machined datums, threads, and local feature control, yes, CNC usually has the advantage. For repeatable thin-sheet profiles, holes, and formed features at high volume, stamping can be extremely consistent and commercially more efficient.

When should a part move from CNC to stamping?

Usually when the design is stable, annual volume has become predictable, and the long-run unit cost savings justify tooling investment. The right timing depends on geometry, material, and how likely future design changes are.

Can a part be both stamped and machined?

Yes. Many parts use a stamped blank or formed base shape and then add secondary machining only on critical features. This hybrid approach often gives a better balance of cost, speed, and precision than choosing only one process.

What kinds of parts are best for stamping instead of machining?

Sheet-based components such as brackets, clips, shields, terminals, retainers, covers, and formed plates are often strong stamping candidates, especially when volume is high and the geometry does not depend on deep 3D machined features.
