Metal Stamping Quality Control: Standards, Methods & Inspection Checklist
Quality control in metal stamping is not a final-step checkbox โ it is an end-to-end discipline embedded across every phase of production. From the coil of raw steel entering your dock to the finished bracket leaving in a shipping carton, dozens of measurement, monitoring, and documentation activities work together to guarantee that every part meets specification.
๐ Comprehensive Guide To Metal Stamping โ Read our comprehensive guide to metal stamping to learn more about stamping quality standards.
This guide walks through the full quality control framework used by serious metal stamping manufacturers: the five process stages where quality is built and verified, the standards that govern acceptance criteria, the defects most likely to occur and how to detect them, and the statistical methods that keep high-volume production under control.
Why Quality Control Is Non-Negotiable in Metal Stamping
Metal stamping is a high-speed, high-volume process. A single progressive die can produce 200โ1,200 parts per minute. That efficiency is precisely what makes quality failures so expensive.
The PPM math is unforgiving. At 1 defect per million (1 PPM) โ a world-class defect rate โ a production run of one billion parts still produces 1,000 defective pieces. If those defects reach a customer’s automated assembly line and cause a line stoppage, the cost per hour of downtime in automotive manufacturing typically exceeds $10,000โ$50,000. The defective part might cost $0.08; the downstream consequence can be six figures.
Cost of poor quality (COPQ) compounds fast:
- Scrap and rework costs (material + labor + machine time)
- Sorting costs (100% manual inspection when a shipment is quarantined)
- Customer line stoppage and expedited freight charges
- Warranty and field recall costs
- Supplier certification suspension or disqualification
For automotive and aerospace supply chains, a single confirmed escape โ a defective part that reached the end customer โ can trigger a formal corrective action (8D report), a containment audit, and months of increased scrutiny. The lesson: investing in quality control up front costs far less than managing escapes downstream.
Quality Control Throughout the Stamping Process
A robust metal stamping quality system is structured around five control gates, each targeting a specific risk zone:
Raw Material โ Tooling Qualification โ First Article Inspection โ In-Process Monitoring โ Outgoing Inspection
โ โ โ โ โ
Mill cert check Die tryout / FAI 100% CMM / Cpk SPC + vision AQL sampling
Thickness check Burr measurement PPAP documentation Tonnage monitor CoC issuance
Hardness test Surface finish Traceability docs Go/no-go gauges Functional test
Each gate has defined acceptance criteria and generates documented records. Together they form a traceable quality trail from raw coil to shipped part.
Stage 1: Incoming Material Inspection
Poor incoming material is the silent root cause behind many stamping defects. A coil with thickness variation outside tolerance will cause tonnage fluctuation and dimensional drift throughout the run. Steel with incorrect hardness will crack during bending or spring back unpredictably.
Mill Certificate Verification
Every coil of steel, aluminum, copper, or stainless steel should arrive with a mill test report (MTR) โ a document from the steel mill certifying the heat chemistry and mechanical properties of that specific coil. Review the MTR against your material specification before the coil touches the press:
- Chemistry: Carbon, manganese, silicon, phosphorus, sulfur levels (and alloy elements for stainless/aluminum)
- Mechanical properties: Yield strength, tensile strength, elongation percentage
- Temper / hardness designation: e.g., CR4 cold-rolled, 1/4 hard, H32
If the MTR is missing or the values fall outside specification, the material should be quarantined and returned before it enters production.
Thickness Measurement
Coil thickness variation affects blank weight, forming forces, springback behavior, and final part dimensions. Spot-check at minimum with a calibrated micrometer at multiple positions across the coil width (edge, center, edge). For tight-tolerance parts or critical applications, 100% edge-to-edge measurement with an automated thickness gauge is preferred.
Acceptable thickness tolerance varies by material and specification. Cold-rolled steel per ASTM A1008 typically holds ยฑ0.003 in. (ยฑ0.076 mm) on thickness. Verify against your drawing callout, not a general rule.
Surface Inspection
Visually and tactilely inspect the coil surface for:
- Rust or oxidation (red or white corrosion deposits)
- Scratches and roll marks (visible lines in rolling direction)
- Pitting (small craters from mill roll damage)
- Edge cracks (longitudinal cracks at coil edges โ a major forming risk)
- Oil contamination (wrong lubricant type or quantity)
Surface defects can telegraph through to the finished part, especially on Class A cosmetic surfaces.
Hardness Testing
Hardness is a quick proxy for tensile strength and formability. Measure Rockwell hardness (HRB for soft steels, HRC for harder tool steels) or Vickers hardness (HV) using a calibrated benchtop tester. Compare readings to the material specification. Steel that is too hard will resist forming and crack; steel that is too soft will yield under tooling loads and produce oversized parts.
Stage 2: Tooling Qualification
The die is the primary quality determinant in stamping. A worn, misaligned, or incorrectly built die will produce defective parts regardless of how well everything else is controlled. Tooling qualification happens before any production parts are made.
Die Tryout and Sample Approval
During die tryout, the tool is run in a press at controlled conditions to produce initial samples. These samples are measured against drawing requirements to confirm the die produces parts within tolerance. Adjustments โ shim corrections, punch height changes, cam angle modifications โ are made iteratively until samples meet spec.
Dimensional Inspection vs. Drawing
All critical dimensions called out on the engineering drawing are measured and compared to nominal and tolerance. This typically uses:
- Manual measurement tools (calipers, height gauges, micrometers) for basic dimensions
- CMM (coordinate measuring machine) for complex geometry, GD&T callouts, and positional tolerances
Any dimension outside tolerance triggers a die modification, not a tolerance waiver (unless the customer formally approves a deviation).
Burr Height Measurement
Burrs โ thin fins of material at punched or blanked edges โ are inherent to the shearing process. The acceptable burr height depends on application: cosmetic parts may require burr โค 0.05 mm; structural parts may accept up to 0.15 mm. Burr height is measured with a calibrated optical comparator or dedicated burr gauge. Excessive burrs indicate incorrect punch-to-die clearance or punch dulling.
Surface Finish Check on Critical Faces
For parts with functional surface requirements (bearing seats, seal faces, mating surfaces), surface roughness (Ra value) is measured with a profilometer. Die surface condition, lubricant type, and press speed all affect surface finish. Verify during tooling qualification that the die produces the specified surface quality.
Stage 3: First Article Inspection (FAI)
First Article Inspection is a formal, documented verification that the production process โ not just the die โ is capable of producing conforming parts. FAI is required by most OEM customers, and is mandatory under PPAP for automotive and AS9100 for aerospace.

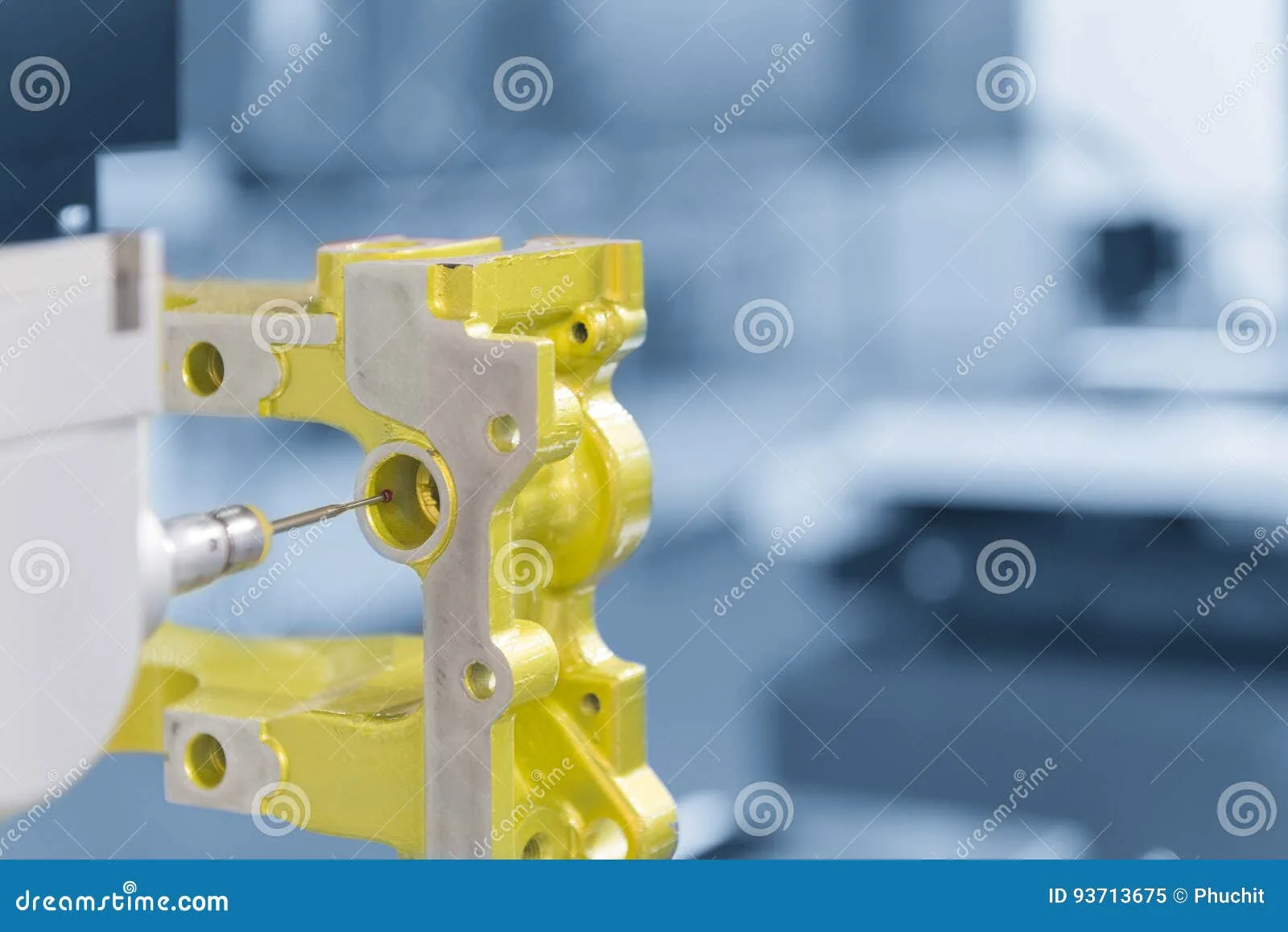

100% Dimensional Measurement via CMM
Every single dimension on the engineering drawing โ all geometric dimensions and tolerances (GD&T) โ is measured on a representative sample of parts (typically 3โ30 pieces depending on customer requirement). A coordinate measuring machine (CMM) physically probes the part surface and computes measured values against the nominal model. The result is a dimensional report called a ballooned drawing with measurement results for each callout.
Material Traceability Documentation
The FAI package must include documentation linking the parts to the specific material heat lot used during the run, with MTR attached. This traceability chain ensures that if a material problem is discovered later, all affected parts can be identified and recalled.
Process Capability Study (Cpk)
A capability study statistically evaluates whether the production process can consistently produce parts within tolerance over time. The key metric is Cpk (process capability index):
- Cpk โฅ 1.33: Minimum acceptable for most industrial applications (corresponds to โค63 PPM defect rate)
- Cpk โฅ 1.67: Required by many automotive customers for critical characteristics (corresponds to โค0.57 PPM)
- Cpk โฅ 2.00: Six Sigma level (โค0.002 PPM) โ rare but required for some safety-critical dimensions
Ppk (preliminary process performance index) is used during FAI on limited samples, while Cpk is used for ongoing stable production. Both are calculated from the same formula but with different standard deviation estimators.
Functional Fit Check
Beyond dimensional conformance, parts must assemble correctly with mating components. A functional gauge or a representative assembly mockup verifies that the stamped part fits as intended โ correct hole locations, correct flange heights, no interference. This catches geometric errors that individual dimension measurements might miss.
PPAP Documentation Requirements
For automotive customers, the complete FAI is documented in a Production Part Approval Process (PPAP) submission. Level 3 PPAP (the most common) typically requires:
- Design records (drawing)
- Engineering change documents
- Customer engineering approval
- DFMEA (Design FMEA)
- Process flow diagram
- Control plan
- PFMEA (Process FMEA)
- Measurement system analysis (MSA / gauge R&R)
- Dimensional results
- Material / performance test results
- Process capability study
- Qualified laboratory documentation
- Appearance approval report (if applicable)
- Sample production parts
- Master sample retention
- Checking aids (gauge drawings)
- Customer-specific requirements
- Part submission warrant (PSW)
Stage 4: In-Process Quality Monitoring
Once production starts, quality cannot be inspected in โ it must be monitored in real time. In-process monitoring catches variation as it develops, before it creates a batch of scrap.
In-Process Quality Methods
| Method | What It Detects | Typical Frequency |
|---|---|---|
| Tonnage monitoring | Dull punch, material thickness variation, mis-feed, die crash | Every stroke (automatic) |
| In-die vision system | Missing holes, wrong position, deformed features, strip misfeed | Every stroke (automatic) |
| Go/no-go gauging | Dimensional pass/fail on critical features | Every 50โ500 parts |
| Air gauging | Bore/OD dimensions to ยฑ0.001 mm | Every 50โ200 parts |
| CMM spot check | Full dimensional audit of running production | Every 500โ2,000 parts |
| SPC control charting | Dimensional drift, process instability | Continuous or per subgroup |
| Visual inspection | Surface defects, burrs, appearance | Every 100โ500 parts |
Tonnage monitoring is one of the most cost-effective in-process controls. A press-mounted load cell measures stamping force on every stroke. A sudden increase in tonnage indicates a dull punch (requires more force to shear). A sudden decrease indicates a punch breakage or mis-feed. Many modern progressive die presses have tonnage monitoring integrated with automatic shut-off that halts the press if tonnage deviates beyond set limits.
Vision systems use cameras mounted inside or adjacent to the die to inspect parts on every stroke at production speed. They detect missing holes (punch breakage), incomplete forms, incorrect strip progression, and foreign material in the die. Modern vision systems can inspect at 400โ800 strokes per minute.
AQL sampling (Acceptance Quality Limit, per ANSI/ASQ Z1.4) provides a statistical basis for attribute inspection. The typical AQL level for metal stamped parts ranges from 0.65 (tight, used for critical features) to 2.5 (general inspection). The AQL determines sample size and acceptance/rejection criteria for a given lot size.
SPC control charts track measured dimensions over time, enabling early detection of process drift before parts go out of tolerance. X-bar/R charts (variables data) are used for measured dimensions; p-charts and c-charts are used for attribute data (fraction defective, defect count per part).
Stage 5: Final / Outgoing Inspection
Before any shipment leaves the dock, a final inspection gate confirms that the batch as a whole meets customer requirements.
AQL Sampling Before Shipment
A statistically determined random sample from the finished lot is inspected. Using ANSI/ASQ Z1.4 with the appropriate AQL level, the inspector checks critical dimensions, surface quality, and functional features. If the sample fails acceptance criteria, the entire lot is placed on hold for disposition (100% sort, rework, or rejection).
Visual Inspection Criteria (Surface Classes)
Visual defects are judged based on surface class:
- Class A (Cosmetic surfaces): Zero visible scratches, burrs, corrosion, or oil stains in normal viewing conditions
- Class B (Functional but visible surfaces): Minor marks acceptable if not affecting function; no sharp burrs
- Class C (Hidden/structural surfaces): Minor cosmetic defects acceptable; must be free of cracks, tears, and through-thickness defects
Functional Testing
For parts with performance requirements:
- Assembly fit check: Part assembled into fixture or mating component to verify correct fit
- Leak test: For deep-drawn cups, tanks, or housings โ helium or pressure test to verify no through-cracks
- Electrical continuity: For electrical contacts and terminals
- Pull/push force test: For assembled spring clips, retainers
Certificate of Conformance (CoC) Issuance
A CoC is a formal document signed by the quality manager stating that the shipment has been inspected and conforms to the applicable drawing revision, material specification, and any customer-specific requirements. The CoC references the lot number, part number, revision level, quantity, and inspection records. Many customers require a CoC with every shipment.
Key Quality Standards in Metal Stamping
| Standard | Scope | Who Requires It |
|---|---|---|
| ISO 9001:2015 | General quality management system | Most industrial customers, broad default requirement |
| IATF 16949:2016 | Automotive quality management system | All Tier 1/2 automotive suppliers |
| AS9100 Rev D | Aerospace quality management system | Aerospace OEMs and Tier 1 suppliers |
| ISO 13485:2016 | Medical device quality management | Medical device manufacturers and suppliers |
| ISO 2768 | General tolerances for linear/angular dimensions | Used when drawing has no individual tolerances |
| ASTM A1008 / A1011 | Cold-rolled / hot-rolled carbon steel sheet | Specified on material callout in drawing |
| ASTM A240 | Stainless steel sheet and strip | Specified for stainless steel parts |
| ASTM B36 / B152 | Brass / copper sheet | Specified for copper alloy parts |
| MIL-STD-105 / ANSI Z1.4 | AQL sampling inspection | Referenced in control plans |
Common Stamping Defects and Detection Methods
| Defect | Primary Cause | Detection Method | Prevention |
|---|---|---|---|
| Excessive burrs | Dull punch; incorrect punch-to-die clearance | Optical comparator; burr gauge; touch inspection | Regular punch sharpening schedule; correct clearance (8โ12% of material thickness typical) |
| Edge cracks / tears | Overbending; excessive draw ratio; insufficient material ductility | Visual inspection; CMM; dye penetrant test | Optimize bend radius; reduce draw ratio; verify material elongation |
| Springback (dimensional) | High-strength material elastic recovery; insufficient overbend compensation | CMM measurement; go/no-go gauge | Design overbend into die; use bottoming or coining; validate Cpk on angle dimensions |
| Dimensional drift | Die wear over production run; temperature variation; material batch change | SPC control charts; periodic CMM spot checks | Implement tool maintenance intervals; monitor tonnage for early wear indication |
| Surface scratches | Tooling surface damage; insufficient lubrication; abrasive particles in die | Visual inspection (Class A criteria) | Regular die polish; correct lubricant application; air blow die between strokes |
| Missing holes / features | Punch breakage; punch misalignment | In-die vision system; tonnage monitoring; go/no-go functional gauge | Monitor tonnage drop (indicates punch break); use vision system with auto-stop |
| Wrinkling (drawn parts) | Insufficient blank holder pressure; excessive draw depth | Visual inspection; height gauge | Optimize blank holder force; reduce draw depth or add draw beads |
| Thinning / necking | Excessive thinning at punch radius in deep drawing | Wall thickness measurement; CMM | Increase punch radius; improve lubrication; optimize draw ratio |
Statistical Process Control (SPC) in Stamping
SPC is the application of statistical methods to monitor a manufacturing process and detect when it deviates from its intended performance โ before defective parts are produced.
Control Chart Types
X-bar/R charts (Variables data): The workhorse of SPC in stamping. X-bar tracks the average of small subgroups (typically n=3โ5 parts measured at regular intervals). R tracks the range (max โ min) within each subgroup. X-bar detects mean shifts (the process drifting off target); R detects spread changes (the process becoming less consistent).
p-charts (Proportion defective): Used when measuring attribute data โ pass/fail โ across variable lot sizes. Tracks the fraction of defective units in each sample.
c-charts (Count of defects): Used when counting defects per unit on a fixed sample size. Useful for surface inspection (count of scratches per part).
Cpk vs. Ppk โ Which to Use and When
- Ppk (Preliminary Process Performance Index): Used during FAI and PPAP on limited initial data. Uses overall standard deviation. Answers: “How did this short run actually perform?”
- Cpk (Process Capability Index): Used for ongoing stable production. Uses within-subgroup standard deviation (based on R-bar or s-bar). Answers: “How capable is the inherent process when only common cause variation is present?”
The correct approach: Use Ppk during PPAP, transition to Cpk once the process is demonstrated to be in statistical control over sustained production.
Control Limit Setting
Control limits (UCL/LCL) are calculated from the data itself โ they are ยฑ3 sigma from the process mean. They are NOT the same as specification limits (USL/LSL). A process can be in statistical control (all points within control limits) but still produce out-of-specification parts if the process mean is off target. Both in-control and capable are required.
Reaction Plan When Process Goes Out of Control
When a control chart signals (a point outside control limits, 7 consecutive points on one side of the mean, or other Western Electric rules), the standard reaction plan is:
- Stop โ halt production if defects are likely
- Contain โ quarantine suspect parts produced since the last good subgroup
- Investigate โ identify the assignable cause (worn tooling, material change, operator error, etc.)
- Correct โ eliminate the root cause
- Verify โ confirm the process returned to control before resuming production
- Document โ record the event, cause, and corrective action in the quality record
Measurement Equipment Used in Stamping QC
| Equipment | What It Measures | Typical Accuracy |
|---|---|---|
| Coordinate Measuring Machine (CMM) | All linear/angular dimensions, GD&T callouts, hole positions, profiles | ยฑ0.001โ0.005 mm |
| Optical comparator / vision system | 2D profile, hole size, burr height, edge straightness | ยฑ0.002โ0.01 mm |
| Profilometer (surface roughness tester) | Surface roughness Ra, Rz | ยฑ5% of reading |
| Rockwell hardness tester | HRB / HRC hardness | ยฑ0.5 HRC |
| Vickers hardness tester | HV hardness (micro and macro) | ยฑ1โ2% |
| Digital micrometer | Thickness, OD, ID | ยฑ0.001 mm |
| Digital height gauge | Step heights, flange heights, feature heights | ยฑ0.001โ0.002 mm |
| Go/no-go plug/ring gauge | Hole/boss dimensional pass-fail | Gauge tolerance per ASME B89 |
| Burr height tester | Edge burr height after punching | ยฑ0.01 mm |
| Air gauge | Bore/OD to high precision | ยฑ0.0005โ0.002 mm |
| Load cell / tonnage monitor | Press forming force | ยฑ1โ2% of full scale |
All measurement equipment must be on a calibration schedule with traceable calibration certificates (traceable to NIST or equivalent national standard). Calibration intervals depend on equipment type, frequency of use, and manufacturer recommendation โ typically 6 or 12 months.
FAQ
Q1: What is a typical AQL level used in metal stamping inspection?
The most common AQL levels for metal stamped parts are AQL 0.65 for critical/safety dimensions and AQL 1.0โ2.5 for general dimensions and visual attributes. The specific AQL is agreed between customer and supplier and documented in the control plan. A tighter AQL means a larger inspection sample and stricter acceptance criteria.
Q2: What is the minimum Cpk required for metal stamping?
For general industrial applications, Cpk โฅ 1.33 is the standard minimum. For automotive critical characteristics, IATF 16949 customers typically require Cpk โฅ 1.67. For aerospace safety-critical dimensions, AS9100 customers may require Cpk โฅ 1.67โ2.00. These values should be verified against your customer-specific requirements document.
Q3: Is a CMM required for all metal stamping inspection, or can manual gauging be used?
CMM is required for complex GD&T callouts (true position, profile of a surface, concentricity) and for PPAP dimensional reports. Manual gauging โ micrometers, height gauges, go/no-go fixtures โ is entirely appropriate for in-process monitoring of simple linear dimensions, especially at production speed. Many stampers use manual gauges for ongoing production control and CMM for FAI, PPAP, and periodic audits.
Q4: How often should stamping dies be inspected for wear?
Die inspection frequency depends on material type, material hardness, production volume, and the die’s design. A common practice is to inspect critical punch tips and die button clearances every 500,000โ1,000,000 strokes for standard carbon steel applications. High-strength steel (HSS, AHSS) is significantly more abrasive โ inspection intervals of 100,000โ250,000 strokes are more appropriate. SPC tonnage monitoring provides a continuous indirect indicator of die wear.
Q5: What is the difference between PPAP and FAI?
FAI (First Article Inspection) is a general term for the initial measurement and verification of parts from a new tool or process โ used across all industries. PPAP (Production Part Approval Process) is a specific, highly structured documentation package defined by AIAG (Automotive Industry Action Group) and required by automotive OEMs. PPAP includes FAI dimensional results but also requires process capability data, FMEA, control plans, MSA gauge R&R studies, and a signed Part Submission Warrant. All PPAP includes a FAI, but not all FAIs are PPAPs.
Conclusion
Metal stamping quality control is a layered system โ no single test or measurement provides complete assurance. The combination of incoming material verification, rigorous tooling qualification, formal first article inspection, continuous in-process monitoring, and disciplined outgoing inspection creates a production environment where defects are caught early, root causes are understood, and customers receive conforming parts consistently.
For manufacturers supplying automotive, aerospace, or medical customers, this quality system must also be certified against the relevant standard (IATF 16949, AS9100, ISO 13485) and supported by statistical evidence of process capability.
Ready to partner with a metal stamping manufacturer that takes quality as seriously as you do? Our facility operates under ISO 9001:2015 certification with full CMM capability, SPC monitoring on critical dimensions, and PPAP submission experience for Tier 1 automotive customers.
Request a quote and discuss your quality requirements โ
Frequently Asked Questions
What is metal stamping quality control?
Metal stamping quality control is a specialized manufacturing process used to create precise metal components. Our team has over 25 years of experience delivering high-quality results for global clients across automotive, aerospace, electronics, and construction industries.
What tolerances can you achieve for metal stamping quality control?
We achieve standard tolerances of ยฑ0.05mm, with precision tolerances down to ยฑ0.02mm for critical applications. All parts are inspected using CMM equipment with Cpkโฅ1.33 process capability.
What materials do you work with for metal stamping quality control?
We work with a wide range of materials including aluminum (1100-6061), stainless steel (301-430), carbon steel, copper, brass, phosphor bronze, and specialty alloys. Material thickness ranges from 0.1mm to 12mm.
What is your minimum order quantity for metal stamping quality control?
We accept prototype orders starting from 1 piece. For production runs, we recommend starting at 1,000 pieces for cost efficiency, though we accommodate various volumes based on project requirements.
How do I get a quote for metal stamping quality control?
Submit your drawings (DWG, DXF, STEP, IGES, or PDF) via our contact form or email. We provide DFM feedback and pricing within 24 hours. Our engineering team reviews every inquiry for optimal manufacturability.
What quality certifications do you have for metal stamping quality control?
We maintain ISO 9001:2015 and IATF 16949 certifications with full traceability. Every shipment includes inspection reports, material certificates, and compliance documentation as required.
Related Resources
Frequently Asked Questions
What is metal stamping quality control?
Metal stamping quality control is a specialized manufacturing process used to create precise metal components. Our team has over 25 years of experience delivering high-quality results for global clients across automotive, aerospace, electronics, and construction industries.
What tolerances can you achieve for metal stamping quality control?
We achieve standard tolerances of ยฑ0.05mm, with precision tolerances down to ยฑ0.02mm for critical applications. All parts are inspected using CMM equipment with Cpkโฅ1.33 process capability.
What materials do you work with for metal stamping quality control?
We work with a wide range of materials including aluminum (1100-6061), stainless steel (301-430), carbon steel, copper, brass, phosphor bronze, and specialty alloys. Material thickness ranges from 0.1mm to 12mm.
What is your minimum order quantity for metal stamping quality control?
We accept prototype orders starting from 1 piece. For production runs, we recommend starting at 1,000 pieces for cost efficiency, though we accommodate various volumes based on project requirements.
How do I get a quote for metal stamping quality control?
Submit your drawings (DWG, DXF, STEP, IGES, or PDF) via our contact form or email. We provide DFM feedback and pricing within 24 hours. Our engineering team reviews every inquiry for optimal manufacturability.
What quality certifications do you have for metal stamping quality control?
We maintain ISO 9001:2015 and IATF 16949 certifications with full traceability. Every shipment includes inspection reports, material certificates, and compliance documentation as required.
