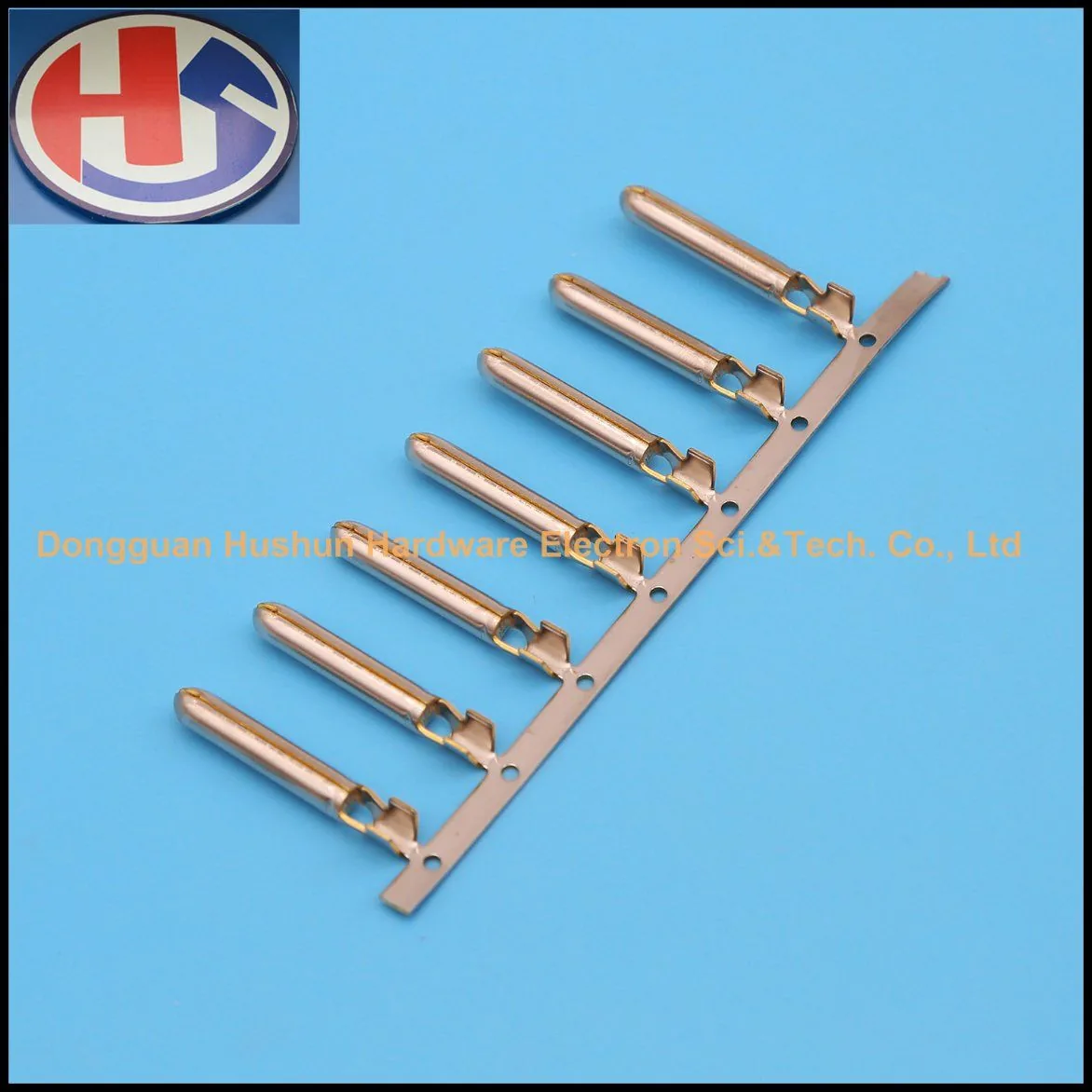

Common Issues in Stamped Electrical Terminals: Causes, Prevention, and Solutions
Electrical terminals look simple. They are not.
📖 precision medical component manufacturing success — Discover how we delivered ±0.01mm tolerance for a US medical device company.
📖 our automotive progressive die success story — Learn how we helped a Tier 2 supplier achieve $134K annual savings.
A stamped terminal that fails to maintain contact force after 10,000 insertion cycles does not fail because someone made a careless mistake. It fails because the spring-back calculation used the wrong elastic modulus for the alloy temper actually delivered. A terminal that passes incoming inspection and then fails six months later in a vibrating automotive junction box fails because the plating adhesion was marginal—acceptable by the gauge, invisible in a standard pull test, and catastrophic in service.
[Electrical metal stamping](/electrical-metal-stamping/) imposes a level of functional precision that is unforgiving precisely because the defects are often invisible until the assembly fails in the field. This guide covers the physics, the common defect modes, and the specific process controls that keep terminal quality within acceptable limits.
Why Electrical Terminals Demand More Than Standard Stamping Quality
Most stamped parts are evaluated on dimensional conformance. Terminals carry two additional performance requirements that purely dimensional inspection cannot capture:
Electrical contact resistance: A terminal must establish and maintain a low-resistance connection under its specified normal force. Contact resistance is governed by actual metal-to-metal contact area at the interface—which depends on surface finish, plating condition, contact geometry, and the force applied. A burr that deflects the mating pin by 0.05 mm can change contact resistance from 3 mΩ to 30 mΩ.
Contact force and spring-back stability: Female terminals work by elastic deflection—the contact beam flexes on insertion, stores elastic energy, and applies a clamping force on the mating pin. If the spring-back of the contact beam is incorrect by even a few percent, the normal force falls below specification. Terminals designed for 1.5–3.0 N normal force may deliver 0.8 N if the bend angle was not compensated correctly. That is the difference between a reliable connection and an intermittent one.
Vibration and fretting corrosion resistance: Automotive and industrial terminals operate in environments with continuous low-amplitude vibration. This vibration causes micro-slip at the contact interface, which frets through the plating and oxidizes the base metal beneath. Maintaining adequate contact force is the primary defense—terminals with insufficient normal force are vulnerable to fretting-induced resistance increase.
These requirements mean that [precision metal stamping](/precision-metal-stamping/) of electrical terminals cannot be evaluated by dimensional conformance alone. Contact force measurement, surface integrity assessment, and plating adhesion testing must be integrated into the quality plan from the start.
Common Defect Types: Root Causes and Solutions
The following defects account for the majority of quality escapes in terminal stamping programs. Each has a specific root cause and a specific corrective action.
| Defect | Root Cause | Solution |
|---|---|---|
| Burrs exceeding specification | Punch/die clearance too large; worn cutting edge | Maintain clearance at 5–8% per side of material thickness; regrind cutting edges at scheduled intervals (typically every 50,000–200,000 hits depending on material) |
| Insufficient contact force | Spring-back compensation angle incorrect; elastic modulus variation between coil lots | Calculate compensation angle per alloy/temper; validate by contact force test on first-article; monitor force on SPC chart |
| Plating adhesion failure | Surface contamination (oils, oxidation) prior to plating; inadequate activation etch | Implement aqueous cleaning + acid activation before plating; measure adhesion by peel or bend-peel test; track via salt spray hours |
| Dimensional drift in production | Progressive die wear; pilot pin wear; strip feed variation | Establish SPC monitoring on critical features (beam length, window width); trigger die maintenance at 1-sigma alert rather than waiting for spec limit |
| Fracture / cracking at bend | Inside bend radius below minimum for alloy/temper; bending parallel to rolling direction | Specify minimum inside radius ≥ 1× thickness for Cu alloys, ≥ 1.5× for phosphor bronze; orient blank so bend crosses grain direction |
| Scratches and gouges on contact surface | Guide rail misalignment; foreign material in strip lubricant; worn die face inserts | Inspect and align guide rails at die setup; filter lubricant; replace worn guide inserts before surface damage propagates |
| Twisted or bowed strip | Coil camber; asymmetric forming forces; feed roll misalignment | Straighten coil before entry; balance forming loads across die; verify feed roll pressure symmetry |
| Inconsistent tab/window geometry | Punch wear combined with insufficient lubrication; thermal expansion in high-speed runs | Monitor punch diameter by micrometer every PM cycle; verify lubricant film at high-speed; allow press warm-up cycle before measuring first article |
Copper Alloy Selection: How Material Choice Affects Every Defect Mode
The alloy you specify determines the spring-back behavior, the formability limit, the electrical performance, and the long-term stability of the terminal. Choosing the wrong alloy—or specifying only “copper” without a designation—creates process variables that no amount of die tuning can compensate.
The three alloys most commonly used for electrical terminals:
| Property | C11000 (ETP Copper) | C19400 (Cu-Fe-P) | C51900 (Phosphor Bronze) |
|---|---|---|---|
| Conductivity (% IACS) | 100% | 60–65% | 15–20% |
| Tensile strength (MPa) | 220–280 | 380–480 | 480–620 |
| Spring-back (typical) | Low | Medium | High |
| Minimum bend radius | 0.5 × t | 0.8 × t | 1.0–1.5 × t |
| Stress relaxation at 100°C | Poor | Good | Excellent |
| Best application | Bus bars, heavy connectors | Automotive signal terminals | High-temp, high-cycle spring contacts |
C11000 (electrolytic tough pitch copper) has the best conductivity but poor spring properties and stress-relaxes rapidly above 60°C. Use it for bus bars and large connectors where spring action is not required.
C19400 is the dominant automotive terminal alloy—it offers a balance of conductivity (65% IACS), strength, and formability. Its spring-back is predictable and its stress relaxation performance at 100–125°C makes it suitable for engine bay applications.
C51900 (phosphor bronze, 6% tin) provides the highest spring force retention and excellent fatigue resistance for high-cycle connectors. Its lower conductivity (15–20% IACS) limits its use to signal contacts where current is low. Its high spring-back requires larger overbend compensation—failure to account for this is the single most common contact force defect on new programs using phosphor bronze for the first time.
When switching coil lots, validate spring-back on the first piece of each coil. Temper variation within the same alloy designation can shift spring-back by ±0.5°—small in degrees, significant in contact force.
Plating Type Selection and Its Effect on Quality Requirements
The plating layer is the functional surface of the terminal. Plating choice determines the solderability, the contact resistance under normal force, the acceptable contamination level before plating, and the testing protocol required.
| Plating | Thickness (typical) | Contact resistance | Key failure mode | Minimum adhesion test |
|---|---|---|---|---|
| Tin (Sn) | 2–5 µm | Low (after mating wipe) | Fretting oxidation; tin whisker growth | Bend-peel test; salt spray 48h |
| Tin-lead (SnPb) | 2–5 µm | Low | Whisker-free but RoHS restricted | Salt spray 48h |
| Nickel (Ni) | 1–3 µm undercoat | Medium-high | Porosity; pinholes → base metal exposure | Salt spray 96h |
| Gold (Au) | 0.1–0.8 µm over Ni | Very low | Pore corrosion if Ni undercoat is thin | Salt spray 96h; cross-section SEM |
| Silver (Ag) | 3–12 µm | Very low | Sulfide tarnish in H₂S environments | Salt spray 48h; tarnish test |
Tin plating is the default for automotive and industrial connectors. The key failure mechanism is fretting: vibration causes micro-slip at the contact interface, which breaks through the soft tin oxide, exposes fresh tin, which re-oxidizes, and progressively increases resistance. Maintaining adequate normal force (typically ≥ 1.0 N for tin contacts) is more effective than increasing tin thickness.
Gold plating is specified for low-level signal contacts (< 50 mA) where even moderate contact resistance is unacceptable. Gold requires a nickel undercoat (typically 1.5–2.5 µm) to prevent gold diffusion into the copper substrate. Thin or porous nickel undercoats are the primary cause of gold-plated terminal failure—the gold appears conforming but the nickel is not providing a continuous barrier.
Nickel plating alone is used for high-temperature contacts (> 150°C) where tin would not survive. Its higher contact resistance requires higher normal forces to achieve low-resistance contact.
Pre-plating surface cleanliness is non-negotiable. Oil contamination from the stamping lubricant—even at the 10–50 mg/m² level—causes adhesion failure that passes normal visual inspection and standard pull tests but fails in thermal cycling. Implement aqueous cleaning with alkaline degreaser + ultrasonic rinse + acid activation sequence. Measure residual oil by water break test after cleaning.
Quality Control in High-Speed Terminal Stamping
Terminal stamping typically runs at 200–1,200 strokes per minute on progressive dies. At these speeds, the conventional approach of end-of-shift sampling is inadequate—a die problem that develops over 2 hours of production at 600 SPM means 72,000 potentially defective parts before detection.
The effective quality control strategy for high-speed [metal stamping components](/metal-stamping-components/) uses three layers:
1. In-die monitoring: Force sensors and acoustic emission sensors mounted in the die detect broken punches, material misfeeds, and double-strip events in real time—usually within one stroke of the event. This is mandatory for terminal programs, where a broken punch can produce parts that look dimensionally acceptable but have torn contact surfaces.
2. Vision system at press exit: Camera-based systems inspect every part for critical dimensional features, presence of burrs, and surface marks as parts exit the die. Modern systems running at 800+ PPM can gate out non-conforming parts directly into a reject bin with a divert mechanism.
3. SPC on sampled critical characteristics: Contact beam length, bend angle, window width, and strip thickness should be measured at regular intervals (typically every 30 minutes on a high-volume run) and plotted on X-bar/R charts. Set alert limits at ±1.5σ—acting on the trend before you reach the specification limit is the difference between a process adjustment and a quality hold.
Die temperature management is also critical at high speed. Progressive dies run warm—contact surface temperatures of 60–90°C are common. As the die heats up, thermal expansion changes the effective clearances between punch and die. Verify that critical dimensions are measured after the press reaches thermal equilibrium (typically 15–20 minutes of production), not on cold first-piece inspection.
Inspection and Testing Methods for Stamped Terminals
Dimensional inspection alone does not qualify an electrical terminal. The following tests must be integrated into the quality plan:
Contact force measurement: Use a calibrated force gauge with a pin fixture matching the mating connector’s pin geometry. Measure the insertion force and the normal force at the specified mating pin engagement position. Compare against the design specification. Flag contact beams where normal force is below 80% of minimum specification even if they pass dimensional check—spring-back variation at the tolerance boundary can put force below spec.
Cross-section metallography: Cut and polish terminal cross-sections at the critical bend radius and contact beam root. Inspect under optical microscope at 100–400×. Look for: micro-cracks in the bend, grain elongation at the outer radius, and plating layer continuity. This inspection is essential at tooling qualification and after any tooling modification.
Salt spray corrosion testing: Per ASTM B117 or IEC 60068-2-11. Standard tin-plated terminals: 48 hours minimum, no base metal corrosion. Gold-plated or nickel-plated: 96 hours. Failures appear as red/brown corrosion spots at the contact area or plating lifting at cut edges.
Insertion/withdrawal cycle testing: Mate and unmate the terminal with its mating housing for the specified number of cycles (typically 10–100 cycles for automotive). Measure contact force and contact resistance before and after cycling. Terminals should maintain ≥ 90% of initial contact force after cycling.
Vibration testing: Per IEC 60068-2-6 or application-specific automotive standards (e.g., LV214). Measure contact resistance continuously during vibration. Resistance excursions above 100 mΩ during vibration indicate insufficient normal force and fretting risk.
Working With Your Stamping Supplier on Terminal Quality
Terminal quality problems are rarely the result of one mistake at one step. They are usually system problems—a material specification that doesn’t constrain temper variation, a contact force target that wasn’t validated on first article, a cleaning process that wasn’t specified in the drawing package.
When sourcing stamped terminals, verify that your supplier has:
- Contact force measurement capability with calibrated fixtures matched to your connector geometry
- SPC control charts for critical dimensions, reviewed by process engineers—not just filed
- A documented die maintenance schedule with maintenance history records
- Plating process qualification records including cleaning step validation and adhesion test data
If you are developing a new terminal design, request first-article contact force data—not just dimensional FAI. The dimensional FAI will almost always pass. Contact force failures on first article, when they occur, reveal spring-back compensation errors that are cheap to correct in tooling at that stage and expensive to correct after production tooling is approved.
For technical consultation on terminal stamping capability and quality systems, [contact our engineering team](/contact/). We specialize in [electrical metal stamping](/electrical-metal-stamping/) for connector and terminal applications and provide first-article contact force data as a standard deliverable.
